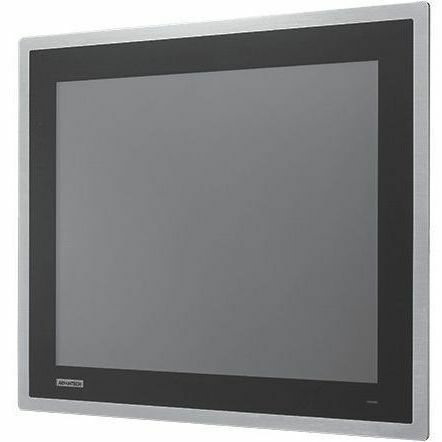

The FPM-800S series are rugged industrial monitors that support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), making them suitable for diverse applications. The true-flat front panel is IP66 rated for protection from water and dust to ensure easy cleaning. With the provision of a 304 stainless steel front bezel, FPM-800S is especially suitable for operation in hazardous and strict hygiene environments.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- FPM-800S
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 17"
- Viewable Screen Size
- 17"
- Screen Mode
- SXGA
- Panel Technology
- Thin Film Transistor (TFT)
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 140°
- Mount Type
- Panel Mount
- Wall Mountable
- Desk Mountable
- Arm-mountable
- Stand Mountable
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Anti-glare
- Tempered Glass
- Ingress Protection (IP) Rating
- IP66
- Video
- Maximum Resolution
- 1280 x 1024
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 800:1
- Brightness
- 350 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive
- Interfaces/Ports
- USB
- Yes
- VGA
- Yes
- DisplayPort
- Yes
- Environmental Conditions
- Operating Temperature Range
- -4°F (-20°C) to 140°F (60°C)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 14.4"
- Width
- 17"
- Depth
- 2.3"
- Weight (Approximate)
- 13.67 lb
- Miscellaneous
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS) 3
