- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDK-1105
- Packaged Quantity
- 1
- Product Type
- LED Touchscreen Monitor
Introduction

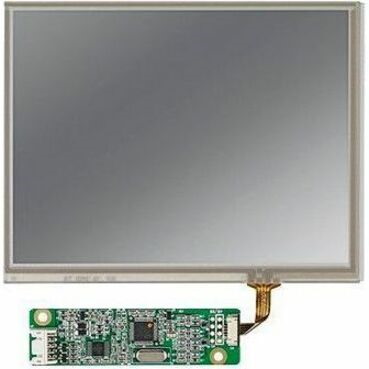

The Advantech IDK-1105 series comes with a 5.7" industrial grade LCD display with 4-wire resistive touch. The series is also available with flexible options for LCD screens enhanced treatment such as Anti-Reflection surface treatment and optical bonding solution. IDK-1105 series supports 4-wire resistive touch with low power consumption at the maximum of 2.1 Watt. IDK-1105 series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
- Technical Information
- Screen Size Class
- 6"
- Viewable Screen Size
- 5.7"
- Screen Mode
- VGA
- Panel Technology
- In-plane Switching (IPS) Black Technology
- Response Time
- 50 ms
- Aspect Ratio
- 4:3
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 170°
- Backlight Technology
- LED
- Features
- Wide Viewing Angle
- Anti-reflective
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 640 x 480
- Color Supported
- 262k
- Native Contrast Ratio
- 1,200:1
- Brightness
- 500 Nit
- Touchscreen Information
- Touchscreen Type
- 4-wire Resistive
- Interfaces/Ports
- USB
- Yes
- Environmental Conditions
- Operating Temperature Range
- -4°F (-20°C) to 158°F (70°C)
- Operating Humidity Range
- 5% to 90% (Non-condensing)
- Physical Characteristics
- Height
- 3.9"
- Width
- 5"
- Depth
- 0.4"
- Weight (Approximate)
- 8.11 oz
