- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-7710G
- Product Type
- Ethernet Switch

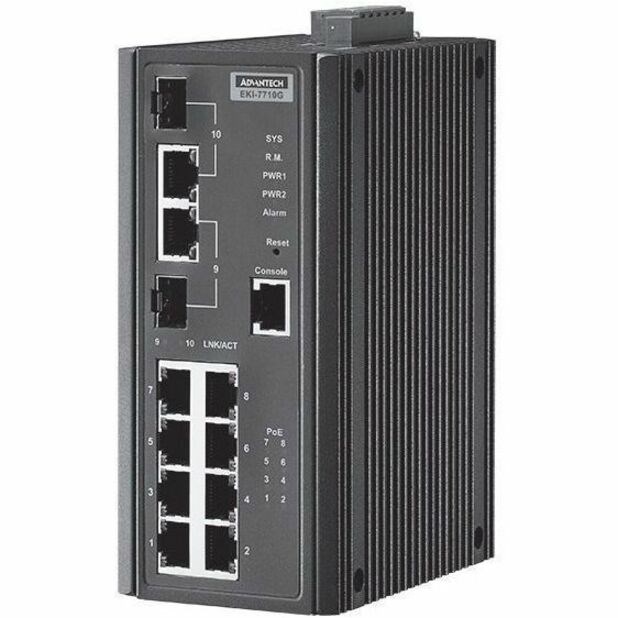

The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
- Access Control List
- Remote Monitoring (RMON)
- Support Dual Image
- IP30
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port
- 2 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45/SFP Combo Port
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-X
- 10/100/1000Base-TX
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Expansion Slot Type
- SFP (mini-GBIC)
- Shared SFP Slot
- Yes
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1ad
- IEEE 802.1ab
- IEEE 802.1x
- IEEE 802.3u
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 120 W
- Input Voltage
- 24 V DC
- 48 V DC
- Power Source
- DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 12.10 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Enclosure
- Height
- 6"
- Width
- 2.9"
- Depth
- 4.1"
- Miscellaneous
- Application/Usage
- Industrial
- Network
- Traffic
- Server
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
