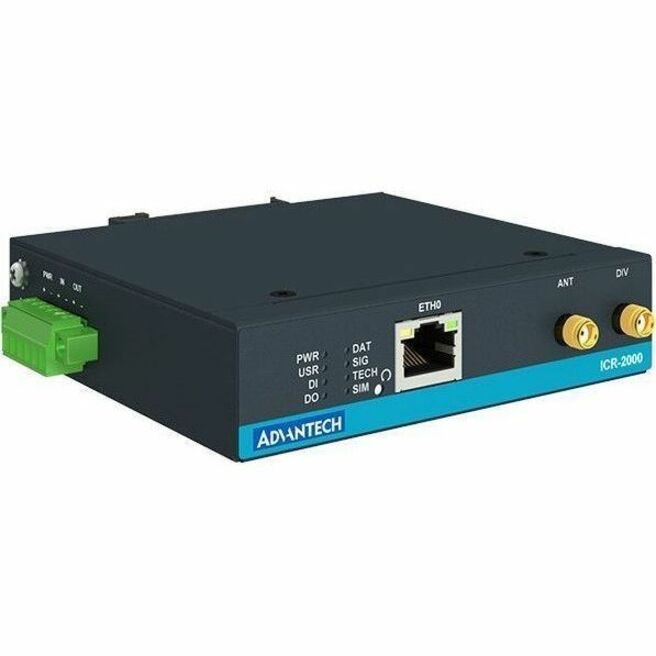

Industrial cellular router ICR-2031 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. Cat.4 rated ICR-2031 router is capable of achieving better typical speeds in 4G coverage areas where the network is enabled with 20 MHz of contiguous spectrum. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. Optional built-in WiFi 802.11 ac,b,g,n with AP, Client and Multirole modes are available.
The router is equipped with one Ethernet port and with digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status
With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, and others are supported on the router. The router is easy to manage using WebAccess/DMP a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Modem/Wireless Router
- Technical Information
- Processor Model
- ARM926EJ-S
- Processor Speed
- 600 MHz
- Standard Memory
- 128 MB
- Wireless Specifications
- Broadband Transmission Technology
- Cellular
- Ethernet
- Cellular Generation
- 4G
- Cellular Network Supported
- LTE 2100
- LTE 1800
- LTE 2600
- LTE 900
- LTE 800
- LTE 700
- LTE 2300
- LTE 2500
- UMTS 2100
- UMTS 900
- Cellular Data Connectivity Technology
- LTE
- LTE Cat 4
- HSPA+
- UMTS
- EDGE
- GPRS
- Total Wireless Transmission Speed
- 18.75 MB/s
- Encryption Standard
- DES
- 3DES
- AES
- RSA
- MD5
- Firewall Type
- NAT
- PAT
- Interfaces/Ports
- Total Number of Network Ports
- 1
- Number of Broadband (RJ-45) Ports
- 1
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- VPN Supported
- Yes
- Number of SIM Card Supported
- 1
- SIM Size Supported
- Micro
- Storage
- Flash Memory Capacity
- 64 MB
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Height
- 1"
- Width
- 4.1"
- Depth
- 3.7"
- Weight (Approximate)
- 11.82 oz
- Miscellaneous
- Package Contents
- SmartFlex SR310 Modem/Wireless Router

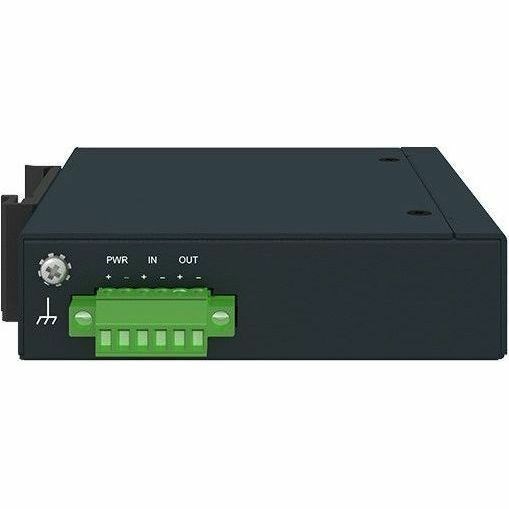

- 6-pin PWR / IO Connector
- Wall Mount Kit
- Certifications & Standards
- EN 301 511
- EN 301 908-1
- EN 301 908-2
- EN 301 908-13
- EN 303 413
- EN 301 893
- EN 300 328
- EN 301 489-1
- EN 301 489-17
- EN 301 489-52
- IEC 61000-6-2
- IEC 61000-6-3
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 55032
- EN 62 368-1
- IEEE 802.3
- EN 18031-1
- E-mark
- CE
- UKCA
- EN 60529
- EN 60068-2-1
- EN 60068-2-2
- EN 60068-2-14
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS) 3
- Waste Electrical and Electronic Equipment Directive (WEEE)
