• General Information
• • Manufacturer
  • Advantech Co., Ltd
  • Manufacturer Website Address
  • http://www.advantech.com
  • Brand Name
  • Advantech
  • Product Series
  • IMC-771
  • Product Type
  • Transceiver/Media Converter

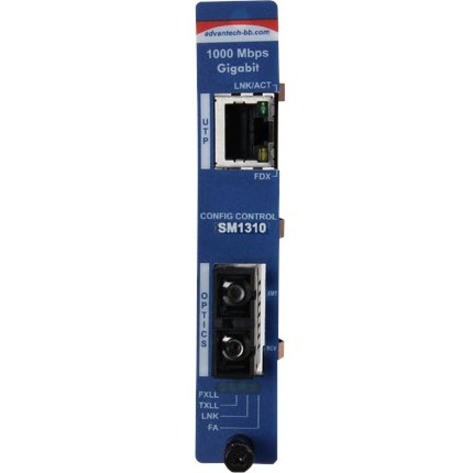

The IMC-771/771 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via a central site with IMC-710 SNMP management module by iView, Telnet, or CLI while installed in a IMC-71x series chassis.

The IMC-771/771 offers a range of speeds up to Gigabit Ethernet and is available with SFP or build-in fiber connector. Multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT), a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup.

The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber, or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.
