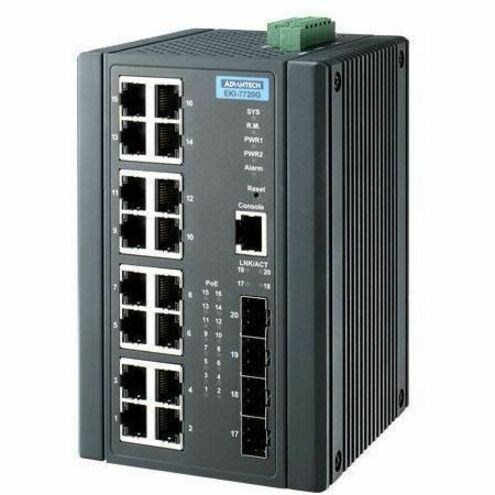

The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-7700
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- IP30
- Broadcast Storm Control
- Strict Priority Queuing (SPQ)
- DHCP Snooping
- Access Control List
- DHCP Relay
- Remote Monitoring (RMON)
- Interfaces/Ports
- Total Number of Network Ports
- 16
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port
- 4 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-TX
- 10/100/1000Base-T
- 1000Base-X
- 1000Base-SX/LX
- 1000Base-LHX
- 1000Base-ZX
- 100Base-FX
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1D
- IEEE 802.1x
- IEEE 802.1ad
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.3ad
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 1343056 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 420 W
- Input Voltage
- 48 V DC
- 53 V DC
- 57 V DC
- Power Source
- DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 16 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Enclosure
- Height
- 6"
- Width
- 3.8"
- Depth
- 4.1"
- Miscellaneous
- Application/Usage
- Network
- Security
- Industrial
- Traffic
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
