Altronix 4 Fused Outputs Supervised Power Supply/Charger. 12/24VDC @ 4A. Grey Encl.

  • Part: 1290544
$245.00

Availability

Out of Stock

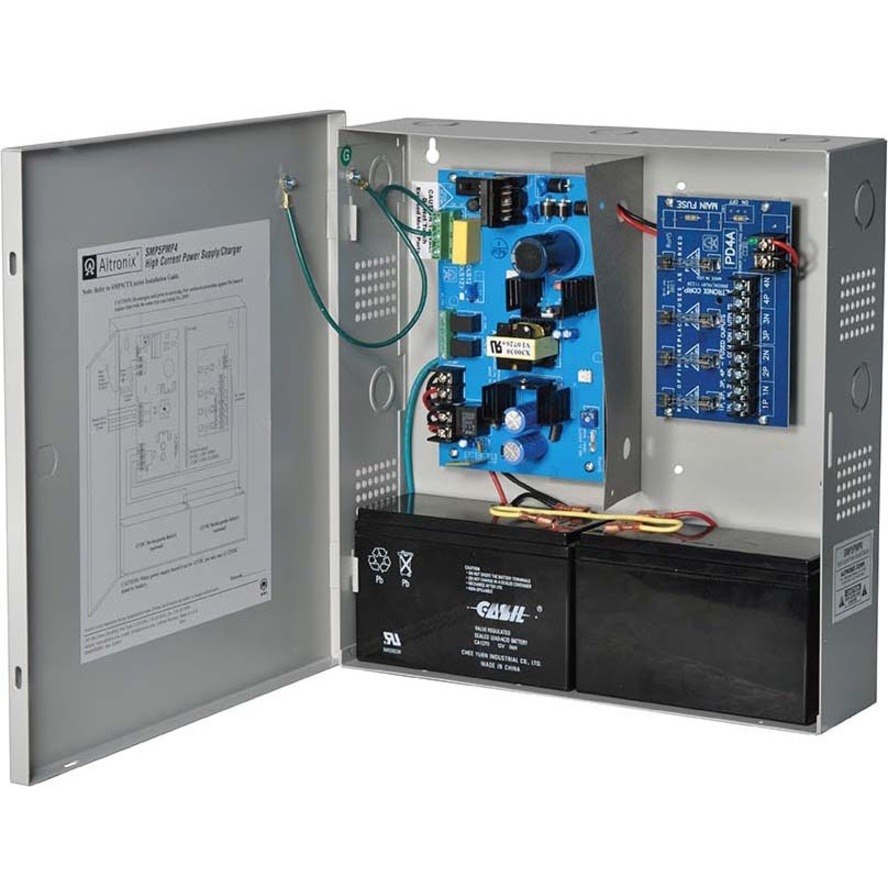

SMP5PMP4 is a multi-output power supply/charger that converts a 115VAC/230VAC, 50/60Hz input into four (4) 12VDC or 24VDC outputs.

  • General Information
    • Manufacturer
    • Altronix Corporation
    • Manufacturer Website Address
    • http://www.altronix.com
    • Brand Name
    • Altronix
    • Product Type
    • Proprietary Power Supply
  • Warranty
    • Limited Warranty
    • Lifetime

  • Technical Information
    • Protection Type
    • Fuse
    • Short Circuit
    • Thermal Overload
  • Power Description
    • Input Voltage Type
    • AC
    • Input Voltage
    • 110 V AC
    • 220 V AC
    • Input Voltage Range
    • 115 V AC - 230 V AC
    • Output Voltage
    • 12 V DC
    • 24 V DC
    • Output Voltage Detail
    • 12 V DC @ 4 A
    • 24 V DC @ 4 A
    • Input Current
    • 950 mA @ 110V
    • 500 mA @ 220V
    • Output Current
    • 4 A
  • Controls/Indicators
    • Status Indicators
    • LEDs:
      • AC Input
      • DC Output
  • Physical Characteristics
    • Form Factor
    • Wall Mount
    • Height
    • 13.5"
    • Width
    • 13"
    • Depth
    • 3.3"
    • Weight (Approximate)
    • 6.10 lb
  • Miscellaneous
    • Country of Origin
    • United States
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
