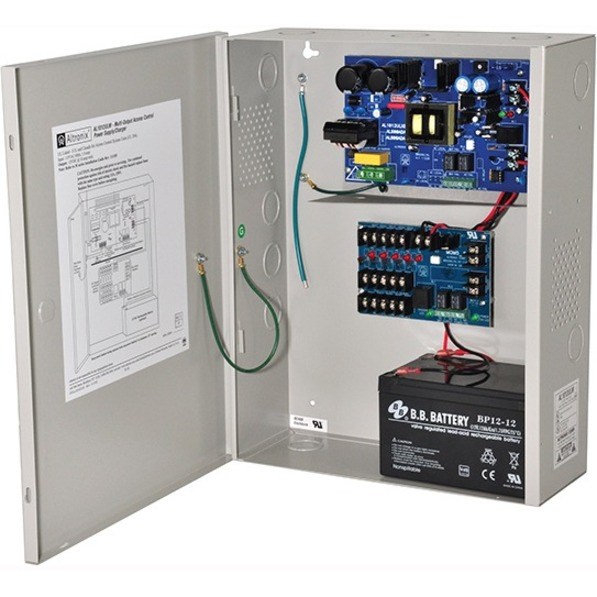

Model AL1012ULM is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an output current of 12VDC @ 10 amp total.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Series
- M
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- PTC
- Short Circuit
- Thermal Overload
- Power Description
- Number of +12V Rails
- 5
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- Output Voltage
- 12 V DC
- Output Voltage Detail
- 12 V DC @ 10 A
- Input Current
- 1.9 A @ 110V
- Output Current
- 10 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 15.5"
- Width
- 12.2"
- Depth
- 4.5"
- Weight (Approximate)
- 9.70 lb
- Miscellaneous
- Compatibility
- Fire Alarm Control Panels
Access Control Systems:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
