- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Proprietary Power Supply

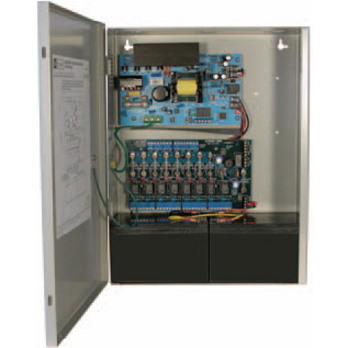

Model AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACM is a fuse protected version of this unit.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Power Description
- Number of +12V Rails
- 8
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 6 A
- 24 V DC @ 6 A
- Input Current
- 1.9 A @ 110V
- Output Current
- 6 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 15.5"
- Width
- 12.2"
- Depth
- 4.5"
- Weight (Approximate)
- 10.20 lb
- Miscellaneous
- Compatibility
- Signal Equipments
Access Control Devices:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
