- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- VERTILINE
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply

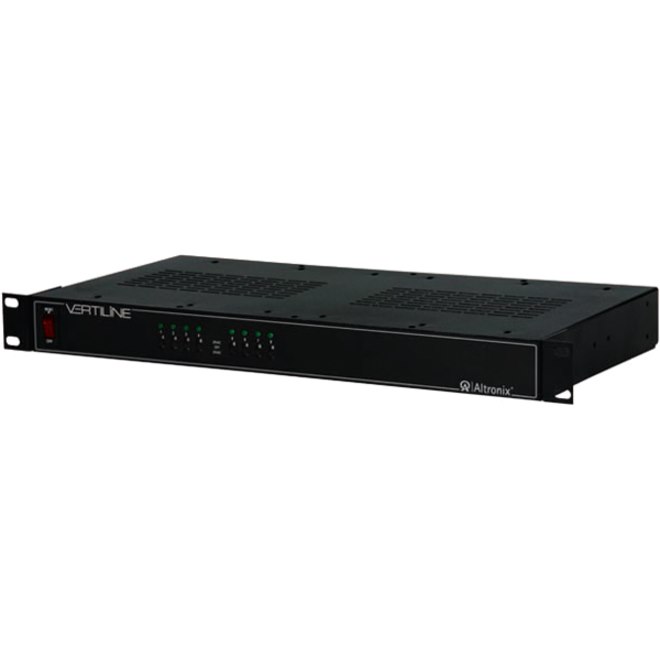

Altronix Vertiline CCTV Rack Mount Power Supplies provide 8 power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in sixteen (16) and twenty-four (24) output models with various power ratings.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- PTC
- Surge
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- 220 V AC
- Output Voltage
- 24 V AC
- 28 V AC
- Output Voltage Detail
- 24 V AC @ 10 A
- 28 V AC @ 10 A
- Input Current
- 3 A @ 110V
- 1.5 A @ 220V
- Output Current
- 10 A
- Interfaces/Ports
- Plug/Connector
- On/Off Switch
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.6"
- Width
- 19.1"
- Depth
- 8.5"
- Weight (Approximate)
- 10.60 lb
- Miscellaneous
- Package Contents
- VERTILINE83D Proprietary Power Supply
- Spare Fuses
- Compatibility
CCTV Systems
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
