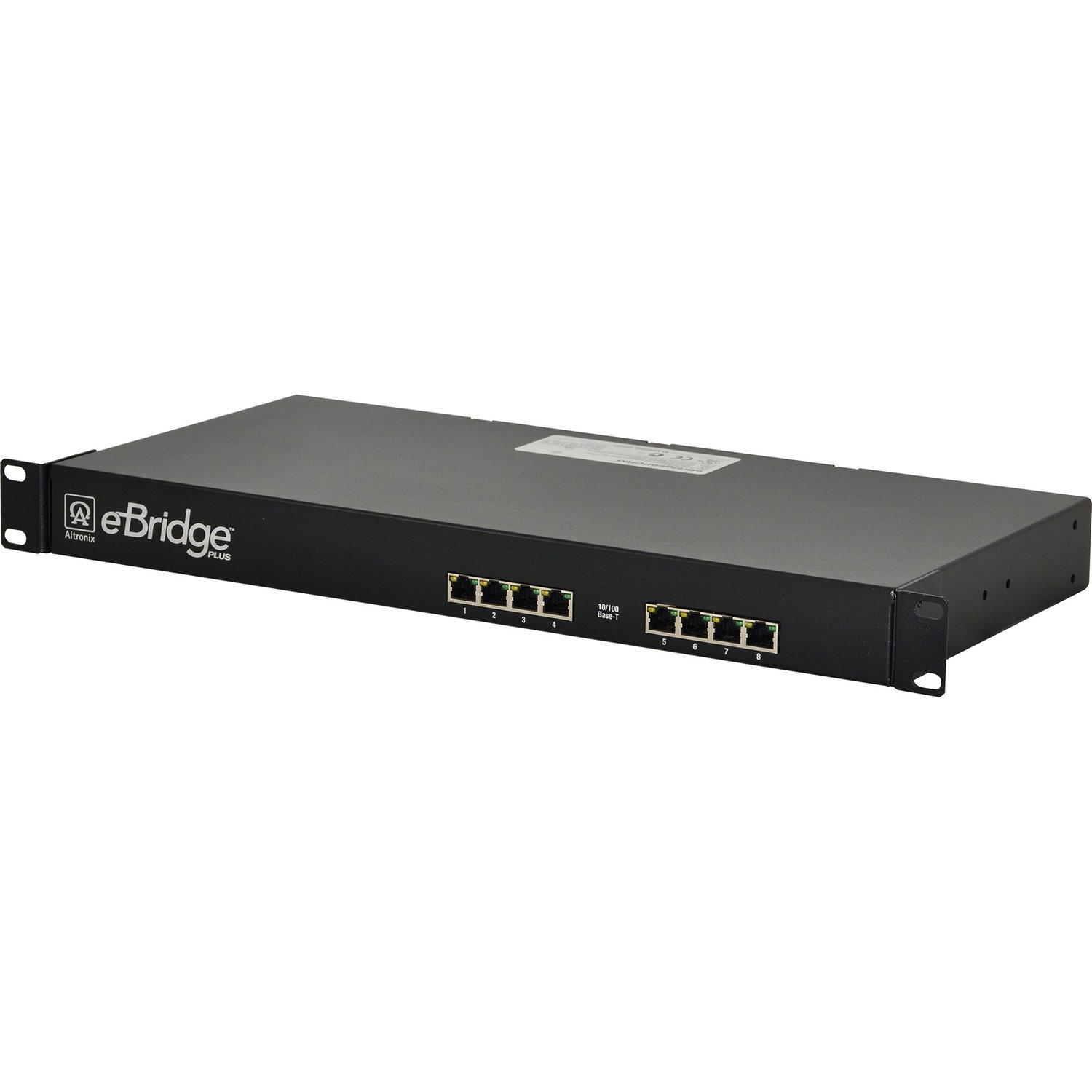

8-Port Ethernet over coax Receiver. Transmits IP video/data over coax up to 500m @ 25mbps full duplex and supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at). Compatible with eBridge1PCT and eBridge1PCTX transceivers. 1U EIA 19" Rack Mount Chassis. UL/cUL Listed (UL60950-1). CE Approved.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- eBridge
- Product Type
- Video Extender Receiver
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 8
- Maximum Operating Distance
- 1640.42 ft
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 8
- Media & Performance
- Media Type Supported
- Coaxial
- Physical Characteristics
- Receiver Height
- 5.50"
- Receiver Width
- 12.50"
- Receiver Depth
- 20.25"
- Receiver Weight (Approximate)
- 7.80 lb
- Miscellaneous
- Country of Origin
- United States
- NDAA Compliant
- Yes
