- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply

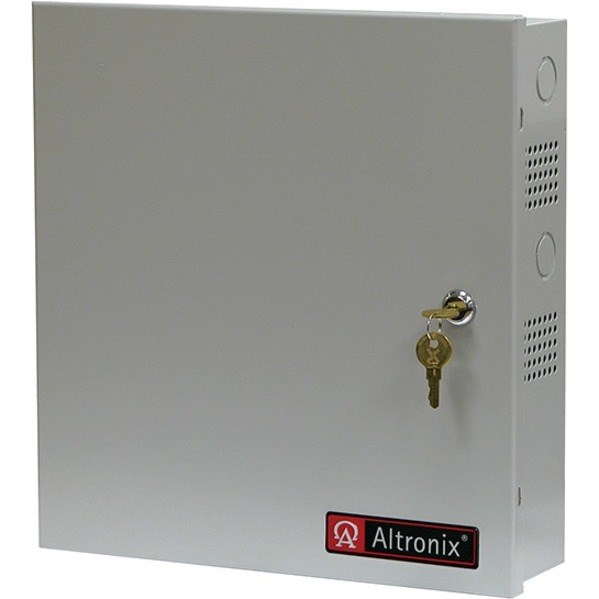

These Altronix AC Wall Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Surge
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- Output Voltage
- 24 V AC
- 28 V AC
- Output Voltage Detail
- 24 V AC @ 12.5 A
- 28 V AC @ 10 A
- Input Current
- 2.7 A @ 110V
- Output Current
- 12.50 A
- 10 A
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 18.10 lb
- Miscellaneous
- Compatibility
- Heaters
- CCTV Cameras
- Video Accessories
- Certifications & Standards
- UL Listed (UL2044)
- cUL
- CE
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
