- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- eBridge
- Product Type
- Transceiver/Media Converter

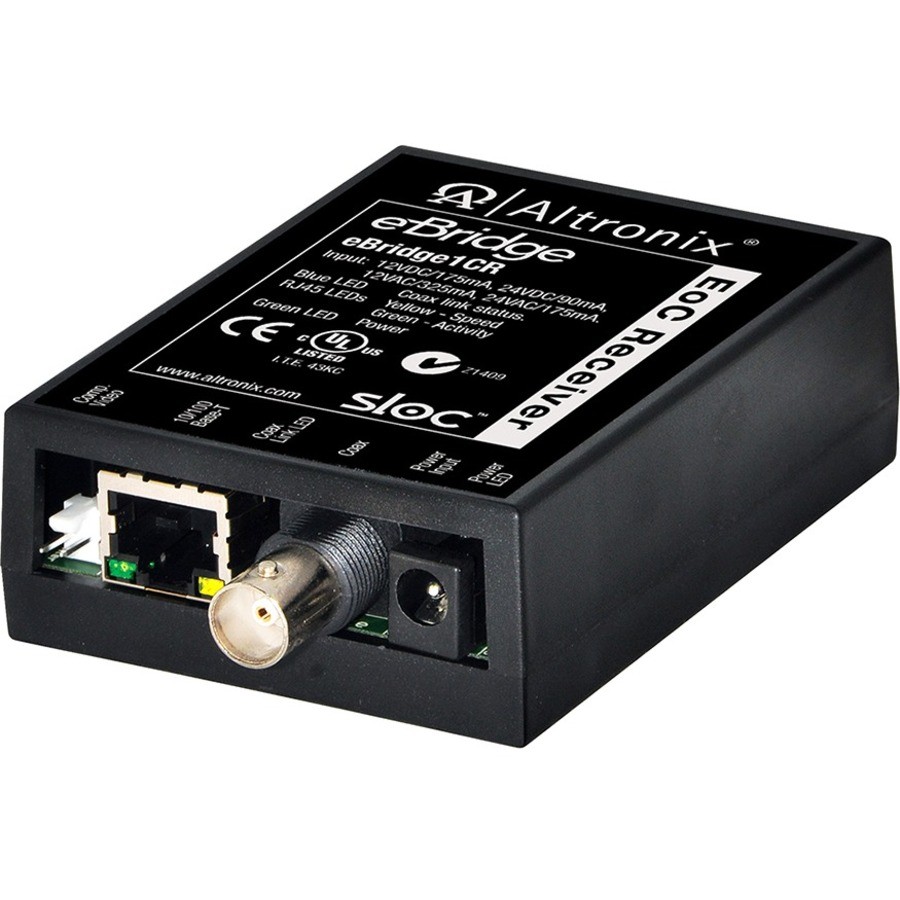

The eBridge1CR is a CAT5 to Coax cable Ethernet adapter. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission over the Coax can be extended to 1500' (five times the 100m/328ft Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge1CR must be used with and eBridge1CT or a compatible Hybrid camera/device with the "sloc" technology.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Number of BNC Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Coaxial
- Maximum Distance Supported
- 0.46 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 1"
- Width
- 2.5"
- Depth
- 3.8"
- Weight (Approximate)
- 3.36 oz
- Miscellaneous
- Package Contents
- eBridge1CR - IP over Coax Receiver
- Composite Video Cables
- 2 x Power Connectors
- Certifications & Standards
- UL listed for Information Technology Equipment (UL 60950-1)
- CUL Listed for Information Technology Equipment (UL 60950-1)
- CE Approved
- C-TICK Approved (Z1409)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
