Q670E ATX motherboard, LGA1700 Socket for 14th/13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C
- Supports up to 125-watt Intel® 14th/13th/12th Gen processors
- 2x PCIe® x16 slots support dual graphic cards
- Four U-DIMM slots for up to 192 GB 4400 MHz DDR5
- Supports VGA, HDMI®, and DisplayPort™
- Seven-year longevity supply program
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0-60° C

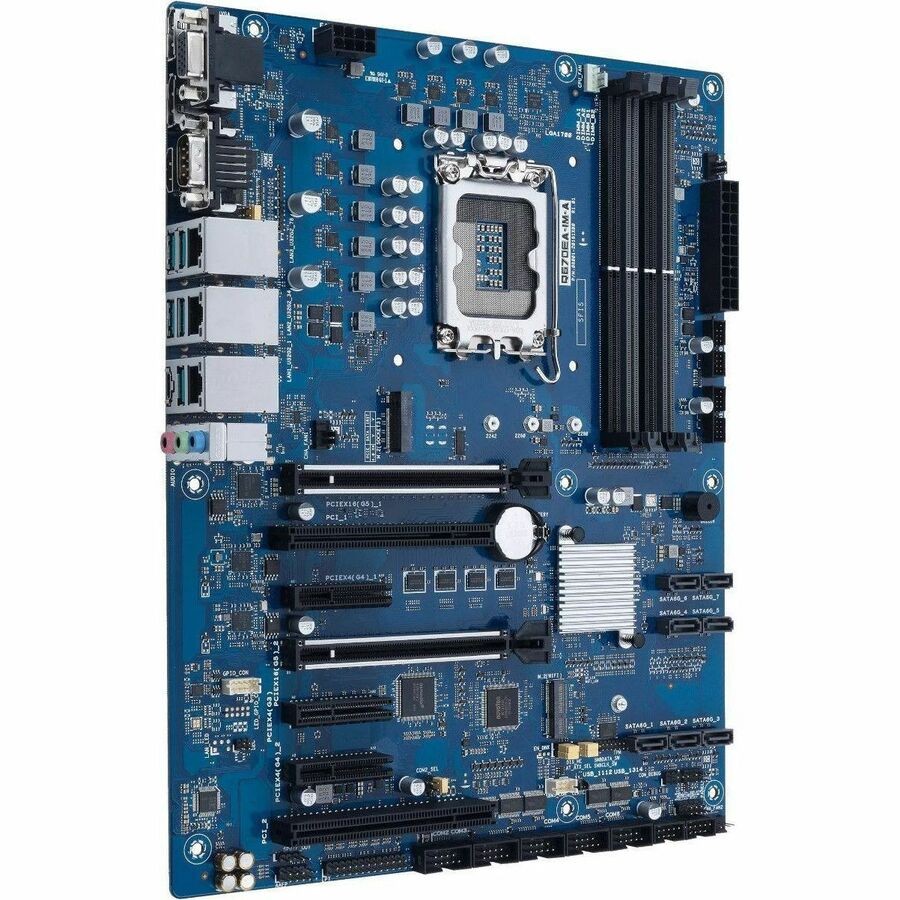

The ASUS Q670EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS Q670EA-IM-A an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
ASUS IoT Industrial Motherboards and Single Board Computers:
Tailored for Performance and Reliability
Industry-leading Development
Strong partnerships with Intel, AMD, NVIDIA, and ARM
Early access program ensures dedicated support
Leading-edge products for the industrial market
OneASUS Expertise
Expertise across all ASUS product lines
Renowned BIOS and vBIOS development
Innovation & Quality
Excellent quality, reliability, and compatibility
Accelerated time to market
CTOS & Services
BIOS/vBIOS modification, BOM, and layout adjustments
Dedicated R&D for Configure-To-Order Services (CTOS)
Tailored design and manufacturing services
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Type
- Industrial Motherboard
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q670E
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Celeron
- Core i3
- Core i5
- Core i7
- Core i9
- Pentium
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 4400 MHz
- 4000 MHz
- 3600 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Network & Communication
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- I/O Expansions
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x4 Slots
- 3
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.2 Gen 2 Type-A Ports
- 5
- Number of USB 3.2 Gen 2 Type-C Ports
- 1
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 3
- Onboard Interfaces
- Number of SATA Interfaces
- 7
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 4
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Miscellaneous
- Brand Compatibility
- Intel
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
