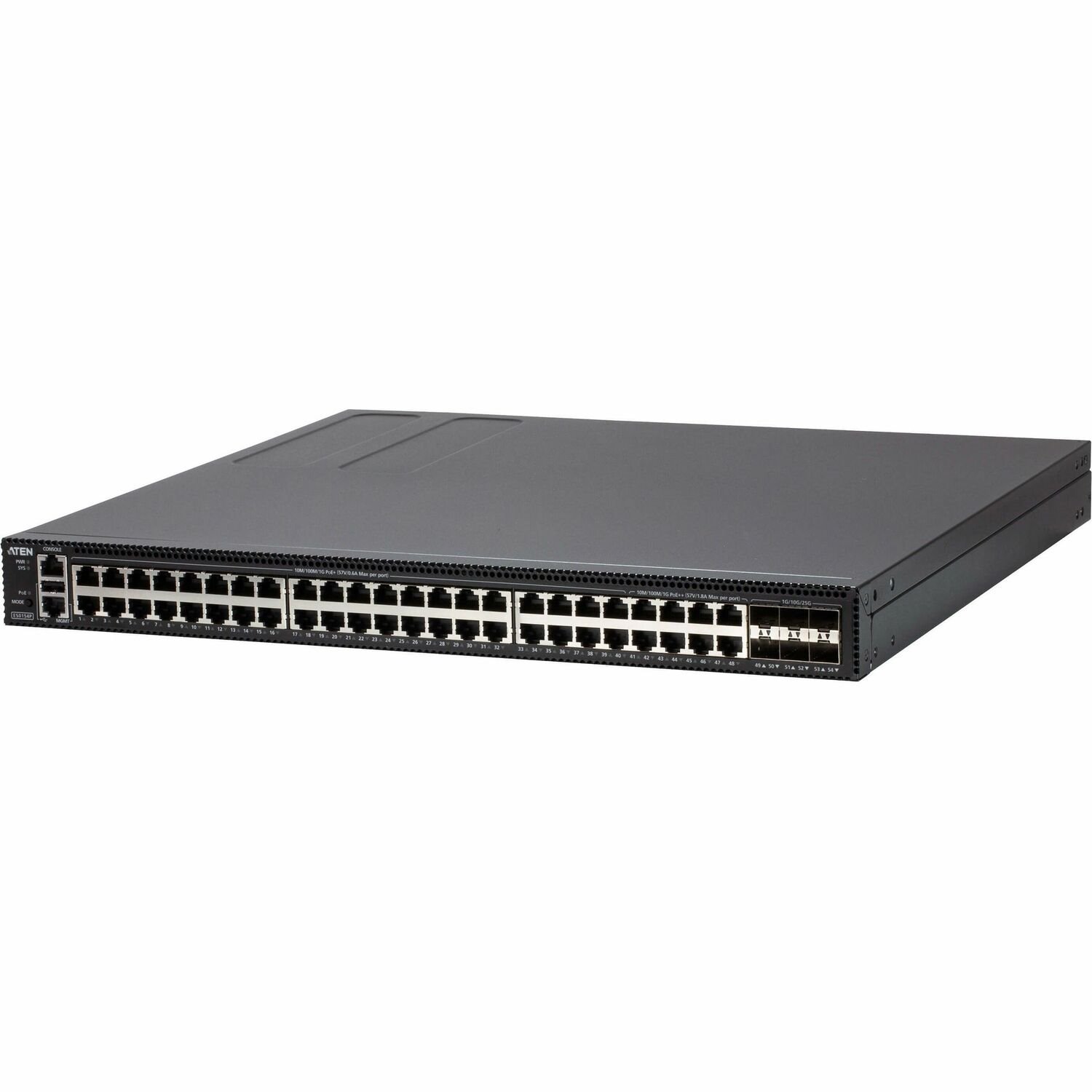

The ES0154 / ES0154P 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. Both the ES0154 and the ES0154P offer a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.
The ES0154 delivers 6 (1G/10G/25G) SFP28 and 48 (10M/100M/1G) RJ-45 ports, while the ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (Support 802.3at/af) ports, and PoE++ (Support 802.3bt) ports (41-48 ports only). The ES0154P is equipped with Power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.
Deploying the ES0154 / ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154 / ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154 / ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Plug and Play
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet PoE+ Network Port
- 6 x 25 Gigabit Ethernet SFP28 Expansion Slot
- 1 x RJ-45 Console Ports
- 1 x RJ-45 Remote Console Port
- 1 x USB Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- 25GBase-X
- Maximum Data Transfer Rate
- 3.13 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Expansion Slot Type
- SFP28
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1w
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- AC
- Power Consumption
- 835 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 16.5"
- Length
- 17.4"
- Weight (Approximate)
- 11.95 lb
- Miscellaneous
- Package Contents
- 54-Port Layer 2+ Gigabit Ethernet Managed Switch with PoE
- 1 x Power Cord
- 1 x RJ-45 to DB-9 Serial Console Cable
- 1 x Grounding Wire
- 6 x Port Dust Covers
- 1 x Mounting Kit
- 1 x User Instructions
- Application/Usage
- Security
- Traffic
- Server
- Infrastructure
- Enterprise
- Compatibility
- KVM Extenders: KE6940AiT, KE6940AT, KE6900AR, KE6900AT, KE6922R, KE6922T, KE6940AR, KE8900ST, KE9900ST, KE6912R, KE6912T, KE9950R, KE9950T, KE8952R, KE8952T, KE8950T, KE8950R, KE6900ST, KE6900R, KE8980MR, KE6900AiT, KE6910, KE9952T, KE9952R, KE6910R
- KVM over IP Matrix System: ES0154
- Management Software / Control Center: CCKM
- Networked AV: VE8952T, VE8950T, VE8950R, VE8900T, VE8900R, VE8662
