- General Information
- Manufacturer
- Bixolon America, Inc
- Manufacturer Website Address
- http://www.bixolon.com
- Brand Name
- Bixolon
- Product Series
- XT5-40
- Product Type
- Thermal Transfer Printer

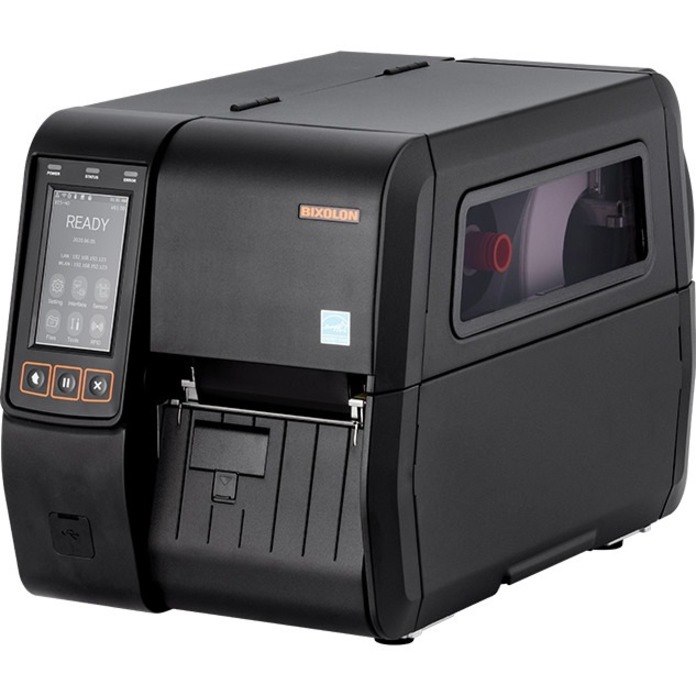

The XT5-40NR supports UHF RFID print and encode capability with a 4.3-inch full-colour touch display which enhances visibility and tracking performance. An intuitive menu and simple calibration functions to reduce setup and operational time. By minimising spacing RFID inlay, it reduces media waste and prolongs the media replacement cycle.
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 14 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Length
- 13.12 ft
- Maximum Print Width
- 4.09"
- Barcode Symbology Supported
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Plessey
- POSTNET
- Standard 2 of 5
- UPC/EAN
- UPC-A
- UPC-E
- IMB
- Aztec Code
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- PDF417
- QR Code
- TLC 39
- Micro PDF-417
- GS1 DataBar (RSS-14)
- Real Time Clock
- Yes
- Application/Usage
- Desktop
- Features
- LCD Display
- RFID Encoder
- Auto-calibration
- Optional Connectivity
- Parallel
- Wireless LAN
- Bluetooth
- Fonts Included
- 10 SLCS
- One SLCS
- 16 BPL-Z
- One BPL-Z
- 9 BPL-D
- Two BPL-D
- 5 BPL-E
- 23 Code Page
- Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
- Print Technology
- Thermal Transfer
- Memory
- Standard Memory
- 512 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB Host
- Yes
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Gigabit Ethernet
- RFID
- Yes
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 4.3"
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Label
- Gap
- Black Mark
- Notch
- Continuous Label
- Fanfold
- Media Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Maximum Roll Diameter
- 7.99"
- Maximum Label Width
- 4.49"
- Fonts & Emulation
- Language Emulation
- SLCS
- BPL-Z
- BPL-E
- BPL-D
- Power Description
- Power Source
- AC Supply
- Input Voltage
- 120 V AC
- 230 V AC
- Environmental Conditions
- Operating Temperature
- 41°F (5°C) - 104°F (40°C)
- Operating Relative Humidity
- 10% - 80%
- Storage Temperature
- 68°F (20°C) - 140°F (60°C)
- Storage Relative Humidity
- 10% - 90%
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 12.8"
- Width
- 10.6"
- Depth
- 19.3"
- Weight (Approximate)
- 30.82 lb
- Miscellaneous
- Power Cable Localization
- US
- Platform Supported
- Android
- PC
- iOS
- Energy Star
- Yes
