- General Information
- Manufacturer
- BROADCOM - IMSOURCING
- Manufacturer Website Address
- http://www.imsourcing.com
- Brand Name
- BROADCOM - IMSOURCING
- Product Series
- 9400
- Packaged Quantity
- 1

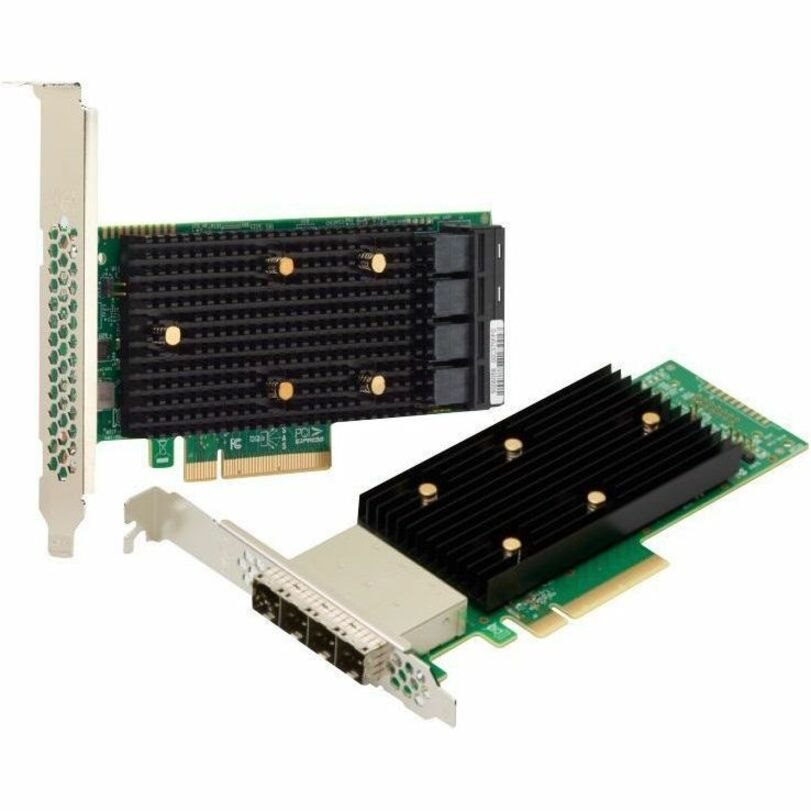

- Product Type
- SAS Controller
- Technical Information
- Host Interface
- PCI Express 3.1 x8
- Controller Type
- 12Gb/s SAS
- Serial ATA
- Maximum Data Transfer Rate
- 12 Gbit/s
- Device Supported
- Server
- Operating System Supported
- Windows
- VMware ESXi
- VMware vSphere
- Red Hat Enterprise Linux
- SUSE Linux
- Ubuntu Linux
- Citrix XenServer
- CentOS
- Debian Linux
- Oracle Enterprise Linux
- Fedora
- FreeBSD OS
- Interfaces/Ports
- Total Number of SAS Ports
- 8
- Number of SAS Ports (External)
- 8
- SAS Connector Details
- 2 x SFF-8644
- Physical Characteristics
- Height
- 2.7"
- Length
- 6.6"
- Form Factor
- Plug-in Card
- Miscellaneous
- Platform Supported
- PC
- Linux
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
