- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- ASR 1000
- Product Condition
- Refurbished
- Product Type
- Router

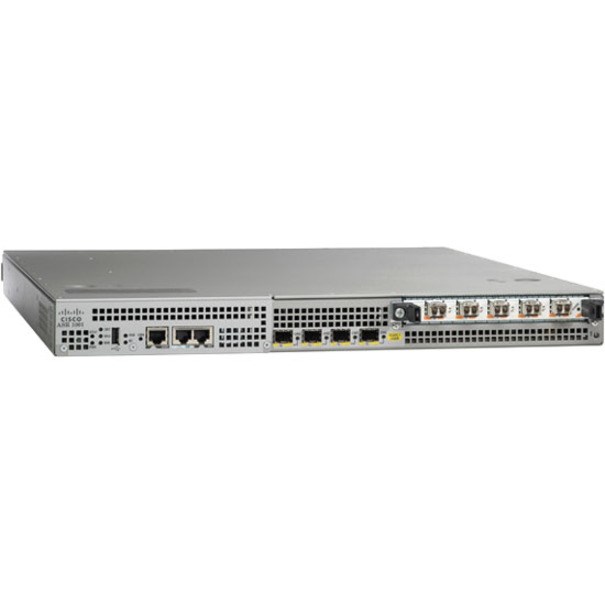

The Cisco ASR 1000 Series provides a significant enhanced value compared to prior generations of Cisco midrange routing solutions by providing more than tenfold performance improvement with services running. Additionally, the routers have hardware and software redundancy, as well as an industry-leading high-availability design.
The Cisco ASR 1000 Series delivers multiple services embedded in the Cisco QuantumFlow Processor at wire speeds from 2.5 to 100 Gbps. The services supported on the Cisco QuantumFlow Processor include security services (for example, encryption and firewall), quality of service (QoS), Network-Based Application Recognition (NBAR), Cisco IOS® Flexible Packet Matching (FPM), broadband aggregation, and Cisco Unified Border Element (SP Edition) (formerly called Session Border Controller, or SBC), among others.
- Warranty
- Limited Warranty
- 90 Day
- Interfaces/Ports
- USB
- Yes
- Powerline
- No
- Management Port
- Yes
- Token Ring Port
- No
- Serial V.35 Interface
- No
- I/O Expansions
- Total Number of Expansion Slots
- 5
- Expansion Slot Type
- SFP (mini-GBIC)

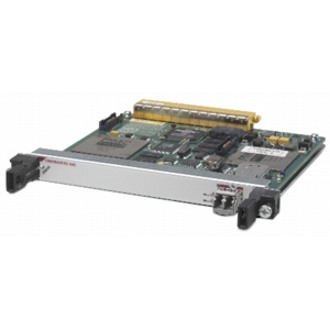

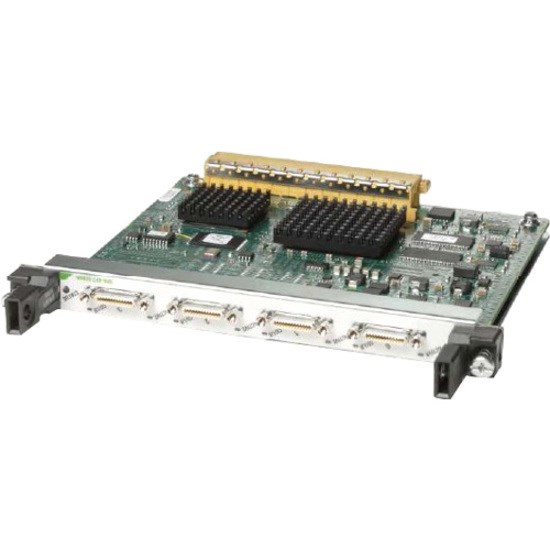

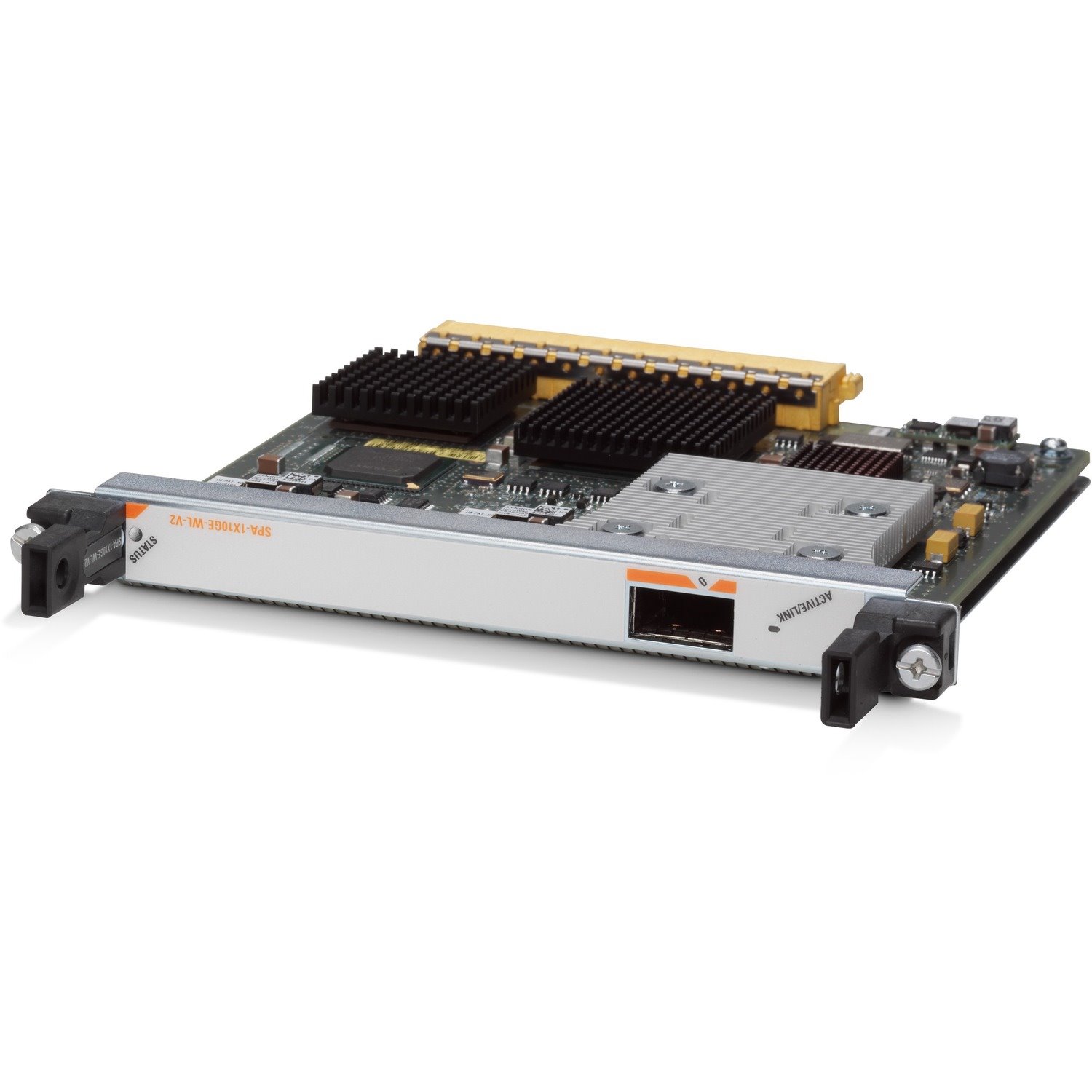

- Shared Port Adapter
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- VoIP Supported
- Yes
- Management & Protocols
- Security Features
- IPsec
- NAT
- L2TP
- ACL
- AES
- 3DES
- SSH
- Deep packet inspection
- Cisco IOS Firewall
- Zone-Based Policy Firewall
- Memory
- Standard Memory
- 4 GB
- Maximum Memory Supported
- 16 GB
- Memory Technology
- DRAM
- Flash Memory
- 1 GB
- Power Description
- PoE (RJ-45) Port
- No
- Input Voltage
- 110 V AC
- 220 V AC
- Redundant Power Supply Supported
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 18.5"
- Weight (Approximate)
- 51.37 lb
- Miscellaneous
- Package Contents
- 1001 Aggregation Services Router
- 2 x Power Supply
- Certifications & Standards
EMC Standards:
- FCC 47 CFR Part 15 Class A
- VCCI Class A
- AS/NSZ Class A
- ICES-003 Class A
- EN55022/CISPR 22 Information Technology Equipment (Emissions)
- EN55024/CISPR 24 Information Technology Equipment (Immunity)
- EN300 386 Telecommunications Network Equipment (EMC)
- EN50082-1/EN61000-6-1 Generic Immunity Standard
- KN22 Class A
CE Marking:
- UL60950-1
- CSA C22.2 No. 60950-1-03
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950.1
