- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Type
- Modem/Wireless Router

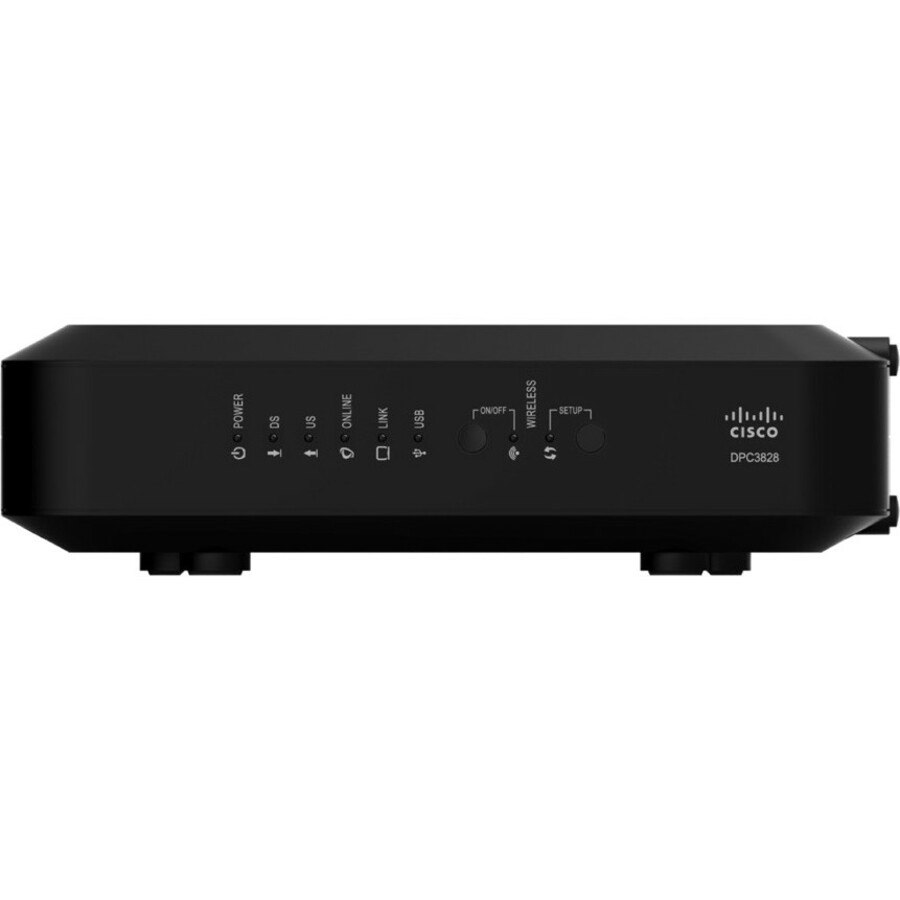

The Cisco® Residential Wireless Gateway Model DPC3828 is a high-performance home gateway that combines a cable modem, router, and wireless access point(s) in a single device, providing a cost-effective networking solution for both the home and small office. The Cisco DPC3828 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 400 Mbps and upstream data rates in excess of 120 Mbps. That's up to eight times faster downloads than conventional single-channel DOCSIS® 2.0 cable modems.
- Warranty
- Limited Warranty
- 90 Day
- Technical Information
- Wi-Fi Generation
- Wi-Fi 4
- Wireless Specifications
- Broadband Transmission Technology
- Cable
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- No
- ISM Maximum Frequency
- 2.40 GHz
- Total Wireless Transmission Speed
- 50 MB/s
- Wireless Security
- WPA2-Enterprise
- WPA2-PSK
- WPA-Enterprise
- WPA-PSK
- WEP
- WMM-QoS
- EAP-TLS
- EAP-TTLS
- EAP-PEAP
- EAP-MD5
- WPS
- Features
- LED Indicator

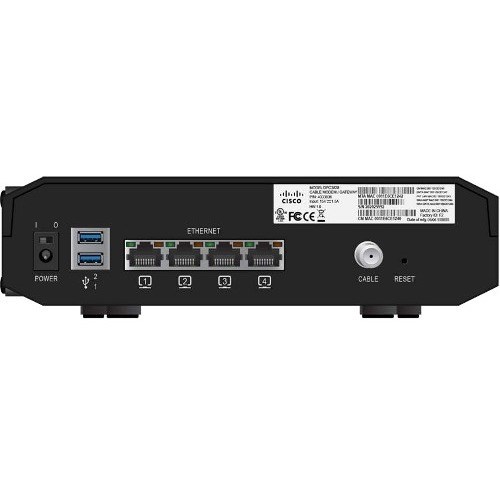

- Interfaces/Ports
- Number of Network (RJ-45) Ports
- 4
- Network (RJ-11)
- No
- VGA
- No
- Serial
- No
- USB
- Yes
- Powerline
- No
- PoE (RJ-45) Port
- No
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Management & Protocols
- Management
- DHCP
- TR-069
- Security Features
- NAT
- IPSec
- L2TP
- PPTP
- NAPT
- MD5
- Stateful Packet Inspection
- Content Filtering
- Domain Block/Deny
- Keyword Blocking
- Java X Applet Blocking
- MAC Address Filtering
- DoS
- Replay Attack Protection
- Malformed Packet Protection
- SYN Flooding
- TCP Hijacking
- LAND Attack
- SYN/FIN (jackal)
- NetBus
- Smurf
- Tear Drop
- ICMP Flowding
- Ping of Death
- Power Description
- Input Voltage
- 15 V DC
- Power Source
- AC Adapter
- Physical Characteristics
- Form Factor
- Desktop
- Wall Mountable
- Height
- 2.1"
- Width
- 5.7"
- Depth
- 7.7"
- Weight (Approximate)
- 15.17 oz
- Miscellaneous
- Certifications & Standards
- DLNA
- FCC
- CE
- 802.11b
- 802.11g
- 802.11n
- Environmentally Friendly
- Yes
