- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Meraki
- Product Type
- Network Camera
Overview

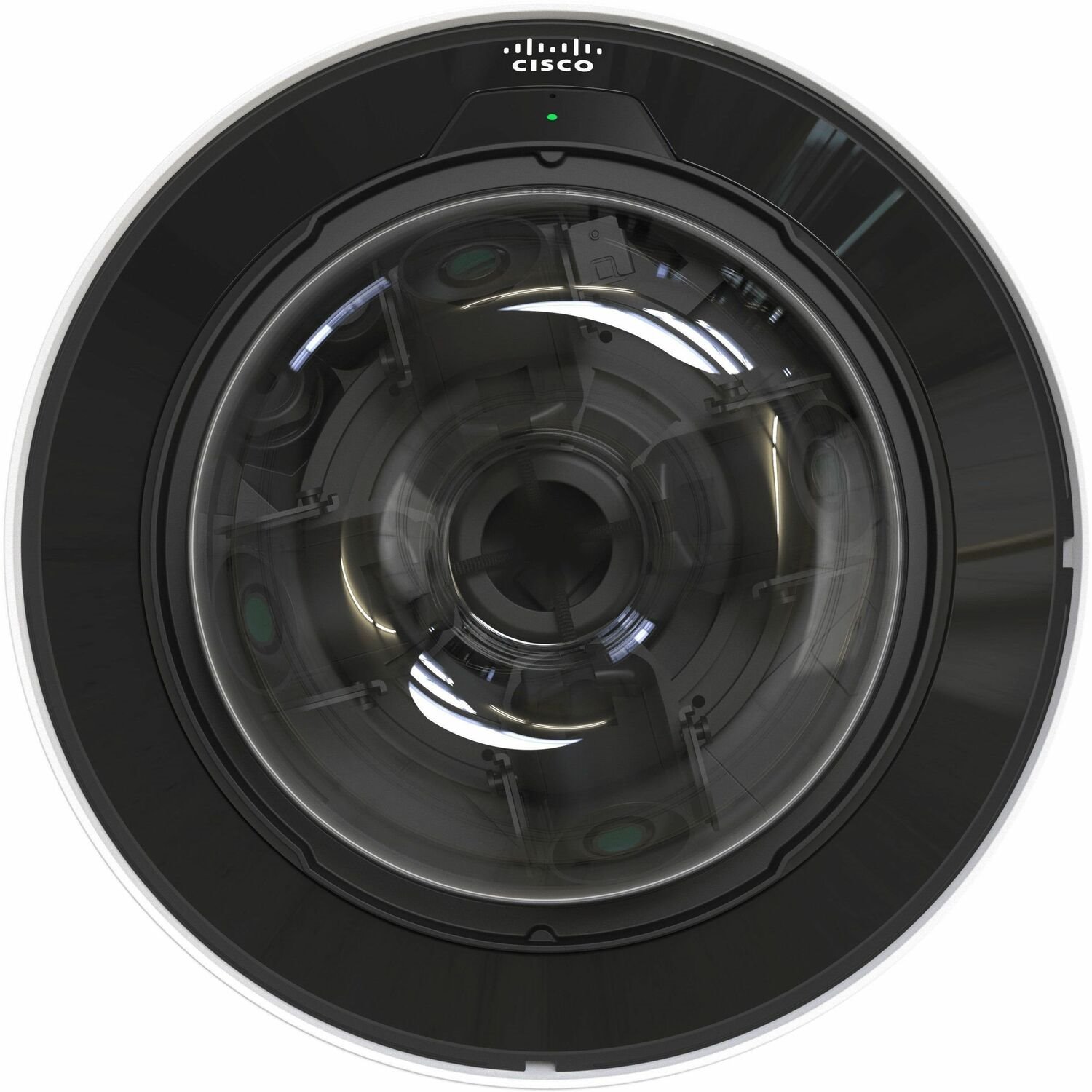

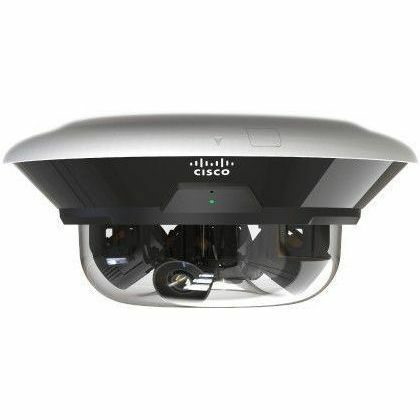

The MV84X multi-sensor camera revolutionizes surveillance by delivering unmatched coverage for large areas. By combining four cameras into a single sleek design, the MV84X offers unmatched coverage. Designed for dynamic environments like warehouses, airports, and manufacturing floors, this powerful camera ensures zero blind spots with its four cameras, with combined 20MP resolution and 360-degree analytics. The MV84X empowers businesses with instant insights, AI-powered object detection, providing a seamless blend of powerful technology and simplicity for the ultimate security solution. Perfectly built for today's fast-paced, demanding spaces, this is more than just a camera: it's a next-gen security experience.
Use Case
The MV84X is ideal for capturing wide and multi-angle views...
- Multi-corridor intersections
- Long hallways
- Open spaces like lobbies
- Wide parking lots
- Building perimeters
- Entryways
- And more
This flexibility makes it particularly valuable in large or complex spaces like
- Offices
- Retail storefronts
- Warehouses
- And more
Security that tells a complete story
The MV84X delivers up to 20MP combined video resolution and offers 360° views, capturing not just the broad context of a scene but also precise detail when needed. Its panoramic field of view enhances situational awareness, making surveillance more efficient. Outdoor-rated and equipped with IR illumination, the MV84X improves safety and security in parking lots, hallways, warehouses, and other open spaces, even in low-light conditions.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- AI-powered
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- Color Supported
- Color
- Field of View
- Diagonal: 129°-55°, Horizontal: 118°-45°, Vertical: 102°-35°
- Effective Camera Resolution
- 20 Megapixel
- Video
- Video Formats
- H.264
- Maximum Video Resolution
- 2560 x 1920
- Maximum Frame Rate
- 24 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 3.42 mm
- Maximum Focal Length
- 6.85 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.85
- Optical Zoom
- 2x
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- TLS
- DSCP
- Remote Management
- Yes
- Storage
- Storage Type
- Solid State Drive
- Solid State Drive Capacity
- 4 TB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 60 W
- Power Source Type
- PoE++
- Physical Characteristics
- Form Factor
- Bullet
- Height
- 4.5"
- Diameter
- 10.5"
- Weight (Approximate)
- 5.95 lb
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 113°F (45°C)
- Miscellaneous
- Features
- Day/Night
- Motion Detection
- Privacy Masking
- Smart Object Detection
- Video Content Analytics
- Built-in IR LED
- Infrared Detection
- Ingress Protection
- AI Analytics
- Motion Sensor
- Indoor/Outdoor
- Outdoor
- Impact Protection Rating
- IK10+
- Ingress Protection Rating
- IP66
