- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module

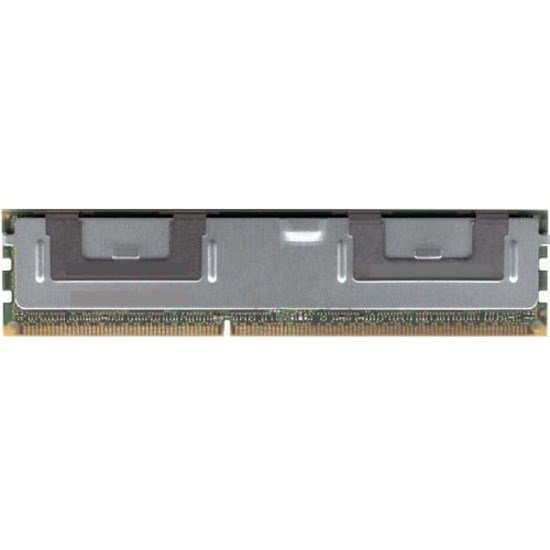

The DRC1866LR/32GB upgrade is a load reduced 4Gx72 memory module, which conforms to JEDEC's DDR3, PC3-14900L standard. The assembly is Quad-Rank. The ranks are comprised of eighteen 2Gx4 DDP (Dual Die Pack) DDR3 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and an Isolation Memory Buffer, which enables higher system memory bandwidth at DDR3 speeds up to 1866 MT/s.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 32 GB
- Memory Technology
- DDR3 SDRAM
- Memory Voltage
- 1.35 V
- Number of Modules
- 1 x 32GB
- Memory Speed
- 1866 MHz
- Memory Standard
- DDR3-1866/PC3-14900
- Error Checking
- ECC
- Features
- Heat Spreader
- Device Supported
- Server
- Physical Characteristics
- Number of Pins
- 240-pin
- Form Factor
- LRDIMM
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Compatibility
Cisco UCS Server
- Environmentally Friendly
- Yes
