- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module

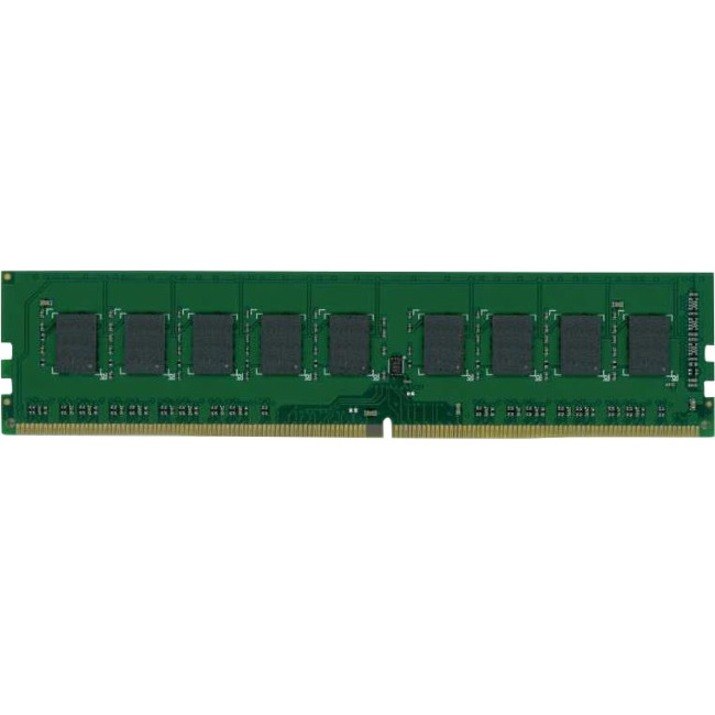

DTI24E1T8W/4G is an Unbuffered 512Mx72 memory module, which conforms to JEDEC's DDR4-2400T, PC4-2400T standard. The assembly is Single-Rank, comprised of nine 512Mbx8 DDR4- 2400T Industrial Temperature Range SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- Technical Information
- Memory Size
- 4 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 4GB
- Memory Speed
- 2400 MHz
- Memory Standard
- DDR4-2400/PC4-19200
- Error Checking
- ECC
- Signal Processing
- Unbuffered
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
