- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Type
- LED Touchscreen Monitor

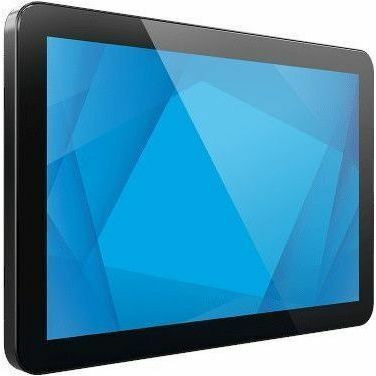

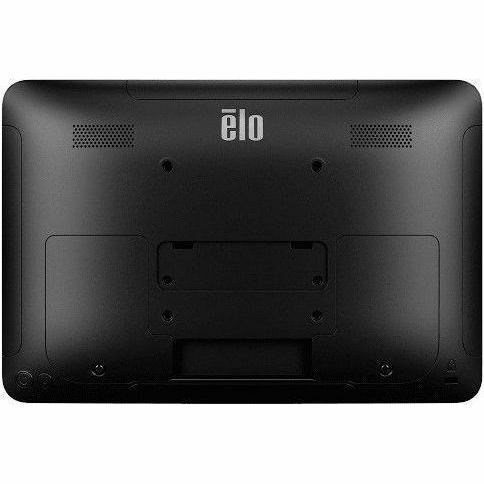

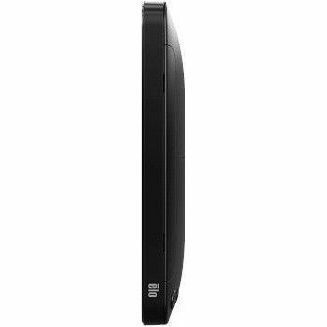

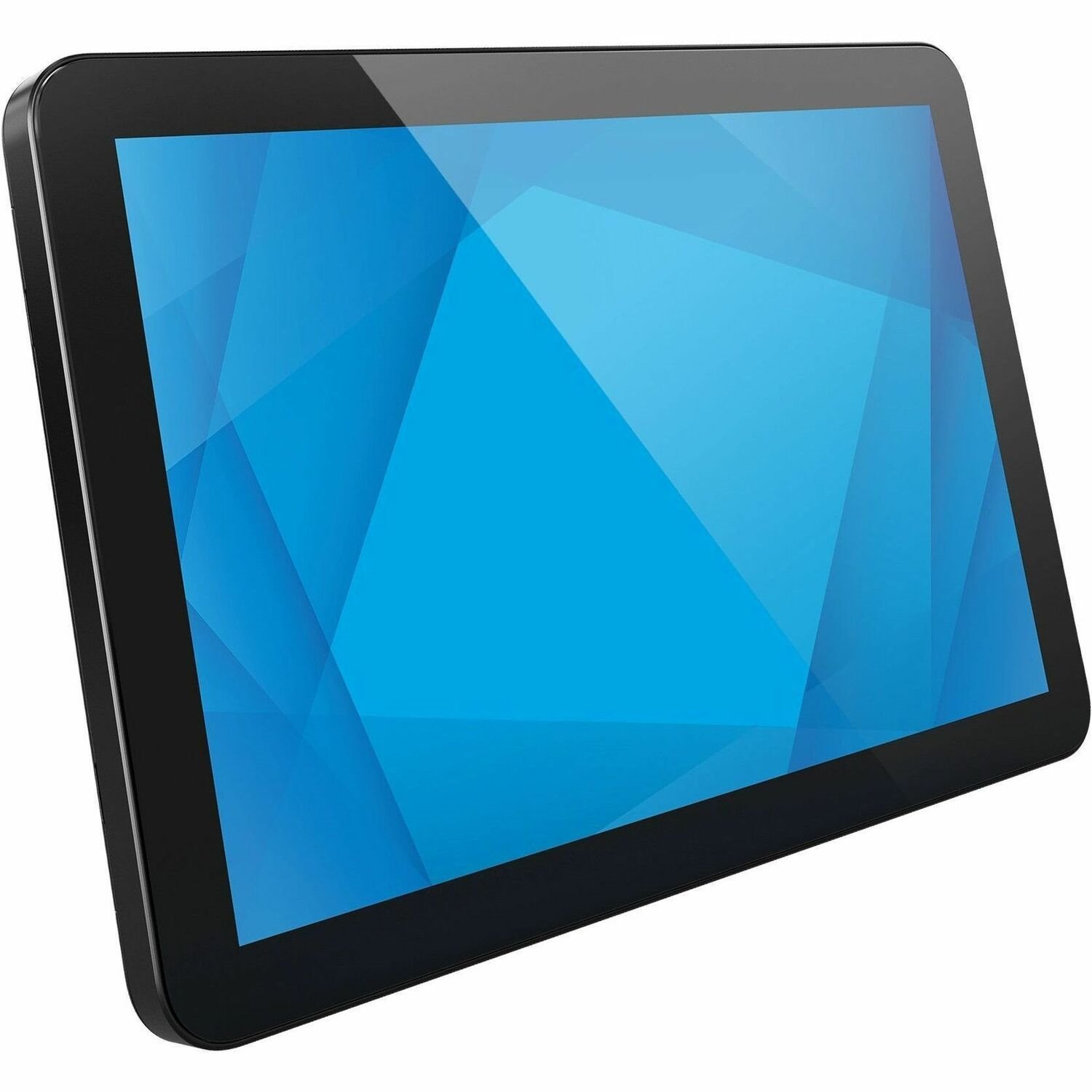

The 1004L touch monitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 10" touchscreen.
Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7" , the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1004L 10-inch touchÂscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
- Technical Information
- Screen Size Class
- 10"
- Viewable Screen Size
- 10.1"
- Screen Mode
- WXGA
- Panel Technology
- Thin Film Transistor (TFT)
- Response Time
- 30 ms
- Response Time Details
- 30 ms Typical
- Aspect Ratio
- 16:10
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 170°
- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Features
- Anti-glare
- On-screen Display (OSD)
- Color Temperature Selection
- Low Blue Light
- ComfortView
- Scratch Resistant
- On-screen Display (OSD) Lock
- Ingress Protection (IP) Rating
- IP54
- Impact Protection (IK) Rating
- IK07
- Active Display Area (H x V)
- 8.50" x 5.30"
- Video
- Maximum Resolution
- 1280 x 800
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 800:1
- Brightness
- 360 Nit
- Maximum Refresh Rate
- 60 Hz
- Audio
- Speakers
- Yes
- Number of Speakers
- 2
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Mini DisplayPort
- Yes
- USB Type-C
- Yes
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 5
- Number of DisplayPorts
- 1
- Total Number of USB Type-C Ports
- 1
- Built-in Devices
- Built-in Devices
- USB Hub
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 104°F (40°C)
- Operating Humidity Range
- 20% to 80% (Non-condensing)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Color Family
- Black
- Product Color
- Black
- Height
- 6.6"
- Width
- 9.8"
- Depth
- 1"
- Weight (Approximate)
- 1.98 lb
- Miscellaneous
- Application/Usage
- Point of Sale (POS)
- Automation
