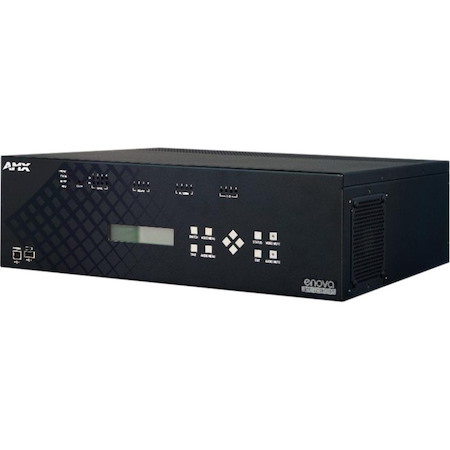

AMX Enova DVX-2255HD-T Audio/Video Switchbox

  • Part: 1408144
$3,062.00

Availability

Out of Stock

The Enova® DVX-2255HD 6x3 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them. The compact 3U Presentation Switcher integrates a variety of different functionality, such as a scaler, analog to digital signal converter, twisted pair transmitter and amplifier with built-in professional grade audio processing into a single chassis. With AMX-exclusive features, the DVX-2255HD is a simple to install, flexible solution, perfectly suited for large and complex conference rooms, classrooms and auditoriums.

The DVX-2255HD includes the next generation NetLinx Integrated Controller technology, the NX-Series. This new controller provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features.

The DVX-2255HD includes a long list of features to ensure optimal audio and video quality from virtually any source. The state-of-the-art professional grade audio DSP delivers quality audio throughout a room. The DVX2255HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in the same connector. Built-in SmartScale® Technology outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions - making the DVX-2255HD easy to specify, easy to install and easy to use.

The Enova DVX's all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.

Common Applications

  • The DVX-2255HD is ideal for dramatically simplifying AV control and distribution in small to medium-sized and large conference rooms, boardrooms and classrooms.
  • With the included DXLink inputs, the DVX-2255HD is perfect for rooms where the AV rack is not near your source devices and display
  • The flexible DVX-2255HD is perfect for any complex collaboration space with a mix of analog and digital sources, multiple displays, or rooms that require support for video conferencing.
  • The DVX-2255HD is perfect for any room or facility with space constraints, especially those that lack space in equipment racks.
Features
  • All-In-One Device - Controller, matrix switcher, scaler, analog to digital converter, amplifier, plus twisted pair distribution and professional-grade audio DSP - all in a space-saving 3U chassis
  • Simplicity & Reliability - Replaces the need for numerous individual components and equipment, ensuring high reliability and saving on configuring and programming costs
  • Low Total Cost of Ownership - With a consistent platform across a variety of sizes, it is easy to standardize on the DVX and reduce costs for hardware, training, support, troubleshooting and sparing
  • Unrivaled Network Security - With Dual NIC to isolate AMX or third-party AV equipment from the primary network, IPv6 and wired 802.1X for protected network access, and user-defined LDAP login group support, the Enova DVX provides rock-solid security
  • Optimal Video Image Quality Every Time - Exclusive SmartScale Technology automatically scales the image to the best resolution and video parameters for each display-even for displays of different information- without manual setup, eliminating the need for costly external scalers

  • General Information
    • Manufacturer
    • Harman International Industries, Inc
    • Manufacturer Website Address
    • http://www.harman.com
    • Brand Name
    • AMX
    • Product Line
    • Enova
    • Product Type
    • Audio/Video Switchbox

  • Technical Information
    • Connectivity Technology
    • Cable
    • Number of Input Devices Supported
    • 6
    • Device Supported
    • Display
    • Number of Displays Supported
    • 3
  • Video
    • Maximum Video Resolution
    • 1920 x 1200
  • Interfaces/Ports
    • DVI In
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Connectivity (RJ-45)
    • Yes
    • Number of Connectivity (RJ-45) Ports
    • 1
    • Number of USB Ports
    • 3
    • Number of HDMI Inputs
    • 2
    • Number of HDMI Outputs
    • 2
    • Number of DVI Inputs
    • 2
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
  • Physical Characteristics
    • Form Factor
    • Rack-mountable
    • Desktop
    • Height
    • 5.2"
    • Width
    • 17"
    • Depth
    • 14"
    • Weight (Approximate)
    • 18.20 lb
  • Miscellaneous
    • Package Contents
      • Enova DVX-2255HD-T Audio/Video Switchbox
      • 1 x Power Cord, Universal
      • 1 x Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector
      • 2 x Front Rack Mounting Brackets
      • 8 x #8-32 x .375 screws
      • 4 x Rubber feet
      • 2 x CC-NIRC, IR Emitter with 3.5mm Phoenix Connector
      • 1 x CC-DVIM-VGAF, DVI to HD-15 Female Adapter
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
