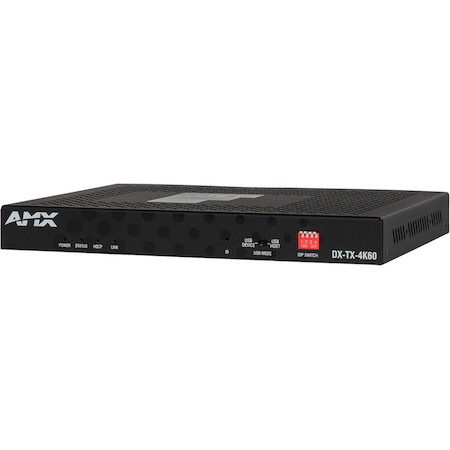

AMX DX-TX-4K60 DXLink 4K60 HDMI Transmitter Module

  • Part: 1446152
$1,319.50

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Harman International Industries, Inc
    • Manufacturer Website Address
    • http://www.harman.com
    • Brand Name
    • AMX
    • Product Line
    • DXLink
    • Product Type
    • Video Extender Transmitter

The AMX DXLink 4K60 HDMI Transmitter Module is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, control, Ethernet, and USB 2.0 over one shielded Cat6, Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Transmitter Modules are perfect for sending HDMI and control signals over long distances to a remote DXLink 4K60 Receiver Module or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board. The transmitter's built-in control ports can be used to control a source device and the ICSLan port provides an IP network access port when used in conjunction with the Enova DGX 100 Series.

PICTURE PERFECTDXLink 4K60 Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

Common Applications

The DXLink 4K60 HDMI Transmitter Module is ideal for extending 4K60 4:4:4 video in any situation where the highest video quality is required or when a simple installation is desired:

  • Colleges and universities that transmit audio and video within or between classrooms for collaborative or distributed learning.
  • Corporations that distribute audio and video within meeting spaces.
  • Healthcare facilities distributing high-resolution video within training rooms, simulation rooms, or labs.

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 328 ft
  • Video
    • Graphics Modes
    • 4K UHD
    • Maximum Video Resolution
    • 4096 x 2160
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
    • Number of USB Ports
    • 2
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 7
  • Physical Characteristics
    • Transmitter Height
    • 1"
    • Transmitter Width
    • 8.66"
    • Transmitter Depth
    • 6.30"
  • Miscellaneous
    • Country of Origin
    • China
