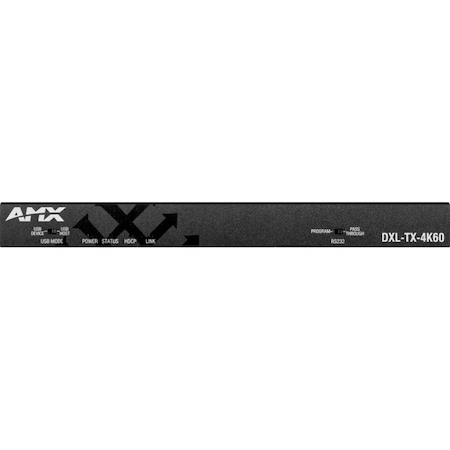

AMX DXLite 4K60 Transmitter

  • Part: 1451708
$578.00

Availability

Out of Stock

AMX DXLite transmitters and receivers leverage HDBaseT technology to distribute audio, video, and USB 2.0 over a single category cable. AMX DXLite supports 4K60 4:4:4, HDCP 2.2, and HDR video, providing compatibility with the latest source devices and displays. DXLite can be used point-to-point (with a transmitter connected directly to a receiver over a single cable) or be used for distant transport in conjunction with an AMX Incite All-in-One Presentation Switcher.

The onboard USB 2.0 available on the DXLite allows for easy distribution of USB signals between the transmitter and receiver. A USB device, such as an AMX Acendo Vibe conferencing soundbar, can be mounted at the display and connected to a DXLite receiver. A laptop can then connect to the transmitter at the table, with USB and video distributed over category cable.

Common Applications
Ideal for supporting cost-effective conferencing in BYOD meeting environments.

Features

  • 4K60 4:4:4 and HDCP 2.2 Support over HDBaseT with Display Stream Compression (DSC)- Visually lossless compression and future-proof support
  • Power over HDBaseT - Can be powered from HDBaseT inputs which means there is no need for an additional power source at the table
  • USB 2.0 Transmission - Connect devices such as cameras, keyboard, mouse and other USB devices
  • Compatible - With the AMX Incite presentation switcher and DXLite RX

  • General Information
    • Manufacturer
    • Harman International Industries, Inc
    • Manufacturer Website Address
    • http://www.harman.com
    • Brand Name
    • AMX
    • Product Type
    • Video Switchbox

  • Technical Information
    • Connectivity Technology
    • Cable
    • Number of Input Devices Supported
    • 1
    • Device Supported
    • Display
    • Number of Displays Supported
    • 4
  • Video
    • Graphics Modes
    • 4K
    • Maximum Video Resolution
    • 4096 x 2160
  • Interfaces/Ports
    • HDMI In
    • Yes
    • Connectivity (RJ-45)
    • Yes
    • Number of Connectivity (RJ-45) Ports
    • 1
    • Number of USB Ports
    • 5
    • Number of HDMI Inputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Rack-mountable
    • Height
    • 1.7"
    • Width
    • 19"
    • Depth
    • 14"
  • Miscellaneous
    • Country of Origin
    • Mexico
