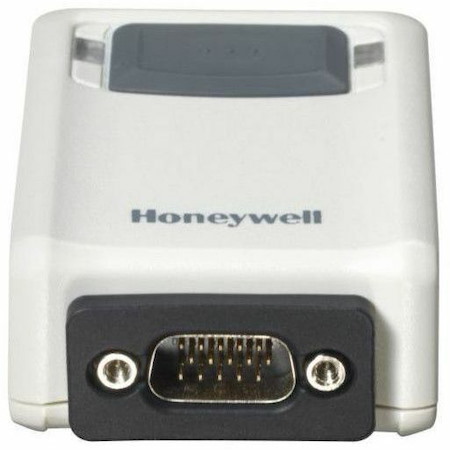

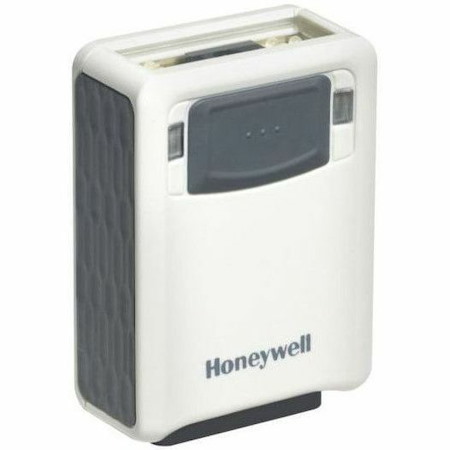

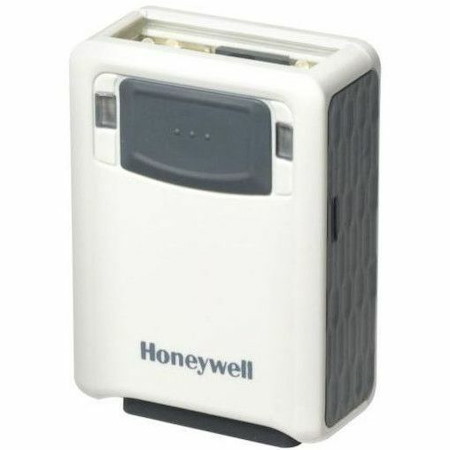

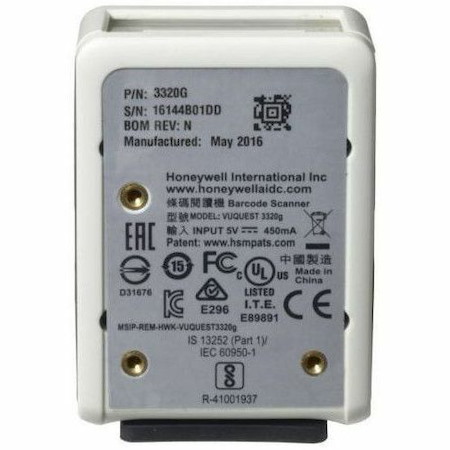

Honeywell Vuquest 3320g Barcode Scanner

  • Part: 1346350
$520.00

Availability

In Stock

The Honeywell Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments. Powered by Adaptus™ Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware. Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners. The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies. The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products. With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks

  • General Information
    • Manufacturer
    • Honeywell International, Inc
    • Manufacturer Website Address
    • http://www.honeywell.com
    • Brand Name
    • Honeywell
    • Product Line
    • Vuquest
    • Product Type
    • Barcode Scanner
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Connectivity Technology
    • Cable
    • Scanning Capability
    • 1D
    • 2D
    • Barcode Symbology Supported
    • Reads standard 1D, PDF, 2D, Postal and OCR symbologies

    • Image Sensor Type
    • Imager
    • Scan Pattern
    • Area
    • Features
    • Notification LED
    • Field of View (Horizontal)
    • 42°
    • Field of View (Vertical)
    • 33°
    • Reading Angle (Skew)
    • 65°
    • Reading Angle (Pitch)
    • 45°
    • Motion Tolerance
    • 106 in/s
    • Maximum Ambient Light
    • 100000 lux
    • Drop Specification
    • Designed to withstand 1.5 m (5 ft) drops

    • Minimum Print Contrast
    • 20%
    • Minimum Element Resolution (Code 39)
    • 5 mil
    • Maximum Element Resolution (Code 39)
    • 10 mil
    • Maximum Element Resolution (DataMatrix)
    • 10 mil
    • Maximum Element Resolution (PDF417)
    • 6.7 mil
    • Image Sensor Resolution
    • 838 x 640
  • Interfaces/Ports
    • Host Interface
    • USB
    • Serial
    • Keyboard Wedge
  • Power Description
    • Maximum Operating Power Consumption
    • 2.30 W
    • Input Current
    • 450 mA
    • Standby Current
    • 90 mA
  • Environmental Conditions
    • Operating Temperature
    • 32°F (0°C) to 104°F (40°C)
    • Storage Temperature
    • -4°F (-20°C) to 158°F (70°C)
    • Humidity (Non-condensing)
    • 5% to 95%
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Height
    • 1"
    • Width
    • 2"
    • Length
    • 2.9"
    • Weight (Approximate)
    • 2.72 oz
  • Miscellaneous
    • Ingress Protection (IP) Rating
    • IP53
