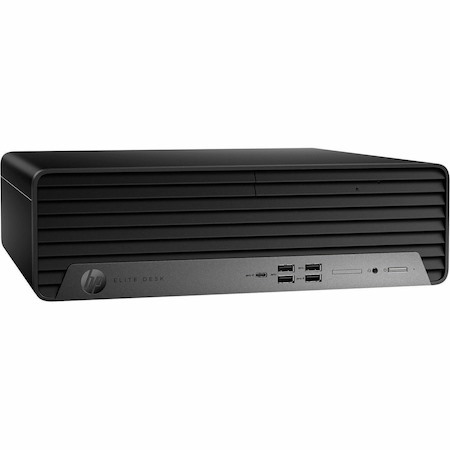

HP EliteDesk 800 Series
Designed for performance and multi-tasking required by today's increasing workload in open workspaces.
- General Information
- Manufacturer
- HP Inc.
- Manufacturer Website Address
- http://www.hp.com
- Brand Name
- HP
- Product Line
- Elite
- Product Series
- 800 G9
- Product Type
- Desktop Computer
- Processor
- Processor Manufacturer
- Intel
- Processor Type
- Core i5
- Processor Generation
- 14th Gen
- Processor Model
- i5-14500
- Processor Core
- Tetradeca-core (14 Core)
- Processor Speed
- 2.60 GHz
- Maximum Turbo Speed
- 5 GHz
- L3 Cache
- 24 MB
- Processor Threads
- 20
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q670
- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR5 SDRAM
- Intel Optane Memory Ready
- Yes
- Storage
- Drive Type
- SSD
- Total Solid State Drive Capacity
- 512 GB
- Solid State Drive Interface
- PCI Express NVMe
- SSD Form Factor
- M.2
- Network & Communication
- LAN Manufacturer
- Intel
- Ethernet Technology
- Ethernet
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 11
- Number of USB 2.0 Ports (Rear)
- 3
- Number of USB 3.2 Gen 1 Ports
- 3
- Number of USB 3.2 Gen 2 Ports
- 4
- Number of USB 3.2 Gen 2x2 Type-C Ports
- 1
- Number Of Ethernet Ports
- 1
- Number of DisplayPort Outputs (Rear)
- 2
- DisplayPort (Rear)
- Yes
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series.
- Optional port, choice of (shown here USB-C® installed):
- DisplayPort™ 1.4a
- HDMI 2.1
- VGA
- Serial
- Dual Type-A SuperSpeed USB 5Gbps signaling rate port
- USB-C® SuperSpeed 10Gbps signaling rate port (Alt Mode DP
- 1.4 with 15W output)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Small Form Factor
- Height
- 3.9"
- Width
- 12.1"
- Depth
- 13.3"
- Weight (Approximate)
- 11.11 lb
- Miscellaneous
- Features
- Tool-less Access
- Security Slot
- Dust Filter
- Energy Star
- Yes
- TCO Certified
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
- TCO Certified 9.0
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
