- General Information
- Manufacturer
- KoamTac, Inc
- Manufacturer Website Address
- http://www.koamtac.com
- Brand Name
- KoamTac
- Product Type
- Barcode Scanner

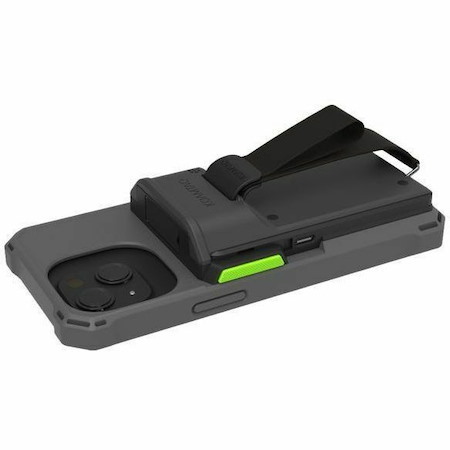

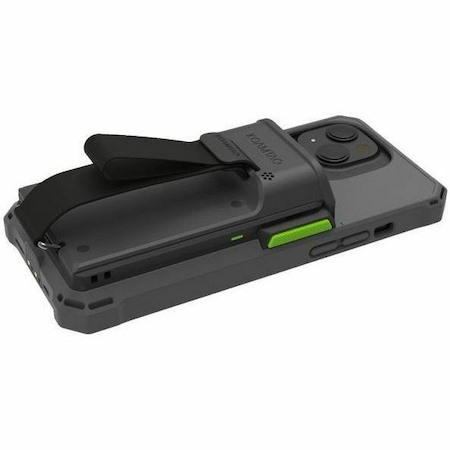

Introducing the KDC1000 Series SmartSled-an innovative leap forward in SmartSled technology! Its sleek design and premium components deliver exceptional scanning performance, seamlessly integrating with Android and iOS devices through a Custom Case for a cost-effective and future-ready solution. With features like 1D/2D barcode scanning, IP65 rating, and versatile charging, it offers an extraordinary scanning experience.
Well-Equipped
The next-gen SmartSled offers two scanning orientations. The standard KDC1000 features forward-facing scanning, while the KDC1100 offers a downward-angled scan engine for specialized needs. Both models can be equipped with standard, medium, or extended-range 2D imager scan engines, allowing businesses to choose the ideal scanning option for their requirements.
Future-Ready
The KDC1000/1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case solution. The SmartSled establishes seamless physical connections via USB (for Android & iPhone 15), Lightning (for iPhone 13 & 14), or Bluetooth 5.0.Upgrading to a new host device is simple with a Custom Case replacement, ensuring a cost-effective and future-ready solution. Future-proof charging solutions utilize a spacer system so that they may continue to be used even when switching to a new host device.
Modular Design for Added Functionality
Leveraging a modular design, the KDC1000/1100 offers users the flexibility to attach a range of companions, augmenting the functionality of the SmartSled. These companions include short and long-range UHF Readers, an HF Reader, a 2,000mAh Extended Battery, a Pistol Grip with an optional 6,000mAh Extended Battery, as well as two mPOS options.
Available for Apple iPhone 13/Pro/Pro Max ,iPhone 14/Pro/Plus/Pro Max, and iPhone 15/Pro/Plus/Pro Max models; and Samsung Galaxy XCover7.
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Image Sensor Type
- Imager
- Scanner Range
- Standard Range
- Scanning Distance
- 29.10"
- Drop Specification
- 5' (1.5 m)
- Minimum Element Resolution (Code 39)
- 20 mil
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 750 mAh
- Environmental Conditions
- Operating Temperature
- -4°F (-20°C) to 122°F (50°C)
- Storage Temperature
- -4°F (-20°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 5% to 95%
- Miscellaneous
- Compatibility
- Apple iPhone14
- Ingress Protection (IP) Rating
- IP65
- Platform Supported
- Android
- iOS
- Mac
- PC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
