- General Information
- Manufacturer
- KoamTac, Inc
- Manufacturer Website Address
- http://www.koamtac.com
- Brand Name
- KoamTac
- Product Type
- Barcode Scanner

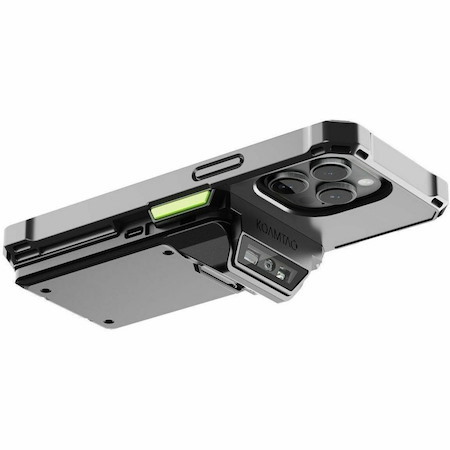

Innovative leap forward in SmartSled technology.
KDC1100 SmartSled features a sleek design and premium components for superior scanning. It connects to Android and iOS devices via a Custom Case, ensuring future readiness. With 1D/2D scanning and an IP65 rating, it delivers an outstanding experience.
Well-Equipped
KDC1100 SmartSled features a downward-angled scan engine for exceptional performance. With standard, medium, and extended-range 2D imager options, it offers flexibility for near- and long-distance tasks. Contact us for details on a flat-angled scan engine variant.
Future-Ready
KDC1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case. It supports USB (for Android & iPhone 15), Lightning (for iPhone 13 & 14), and Bluetooth 5.0. Upgrading to a new device is simple with a Custom Case replacement, and its spacer system allows continued use during device changes.
Modular Design for Added Functionality
KDC1100 SmartSled offers a modular design, enabling users to attach various companions for enhanced functionality. Options include UHF Readers, an HF Reader, a 2,000mAh Extended Battery, and a Pistol Grip with a 6,000mAh Extended Battery.
Compatibility
Available for Apple iPhone 13/Pro/Pro Max, iPhone 14/Pro/Plus/Pro Max, iPhone 15/Pro/Plus/Pro Max models, and iPhone 16/Pro/Plus/Pro Max models; and Samsung Galaxy A35 and XCover7.
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1D:
- Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1
2D:
- Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes:
- POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
- Image Sensor Type
- Imager
- Scanner Range
- Standard Range
- Scanning Distance
- 29.10"
- Drop Specification
- 5' (1.5 m)
- Minimum Element Resolution (Code 39)
- 20 mil
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 750 mAh
- Environmental Conditions
- Operating Temperature
- -4°F (-20°C) to 122°F (50°C)
- Storage Temperature
- -4°F (-20°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 5% to 95%
- Miscellaneous
- Compatibility
- APPLE iPhone15 Pro Max
- Ingress Protection (IP) Rating
- IP65
- Platform Supported
- Android
- iOS
- Mac
- Windows
- Smartphone
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
