- General Information
- Manufacturer
- KoamTac, Inc
- Manufacturer Website Address
- http://www.koamtac.com
- Brand Name
- KoamTac
- Product Type
- Barcode Scanner Kit

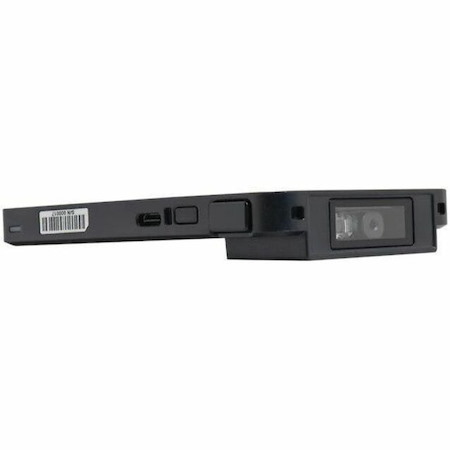

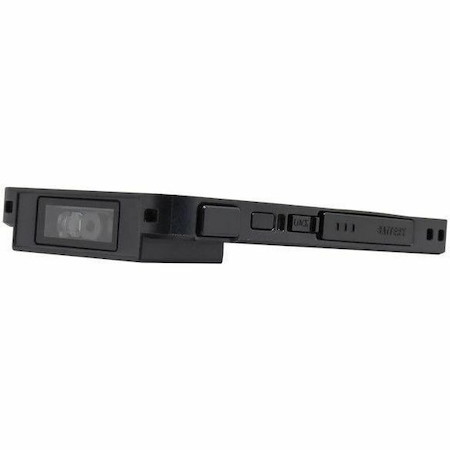

The KD480D is a 1D CCD Bluetooth Low Energy Barcode Sled Scanner which enables diverse mobile Auto-Identification applications to collect barcode data with various smartphones and tablets.
The KDC480 is IP65-rated and has a 5' drop spec, making it ideal for any tough environment.
KOAMTAC's innovative Bluetooth technology and user friendly design allows users to upgrade the smartphone periodically while keeping the KDC480 main system. New integrated charging cases allow the battery and phone to charge simultaneously utilizing a USB Type-C cable or charging cradle.
KDC480 comes with FREE KTSync keyboard wedging software and FREE SDK for Android, Blackberry, iOS (iPhone, iPod touch, iPad) and Windows.
- SmartSled Case Sold Separately
- Supports all Major 1D Barcodes
- 8MB Internal Flash Memory for storing data
- Bluetooth Low Energy 5.0: HID (Android/iOS/Windows)
- SPP (Optional Secure Mode)
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- Barcode Symbology Supported
1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- Code 39
- ITF14
- Code 128
- Interleaved 2 of 5
- Codabar
- GS1-128
- Code 93
- Code 35
- Bookland EAN-13
- EAN-13/8 incl. add on
- UPC-A/E incl. add on
- GS1 Omni
- GS1 Limited
- GS1 Expanded
Postal Codes:
- POSTNET
- Planet Code
- British Post
- Canadian Post
- Netherlands (KIX) Post
- Australian Post
- Japanese Post
- Chinese Post
- Korean Post
MRZ:
- Supported
- Image Sensor Type
- CCD
- Scan Mode
- Trigger
- Scanning Distance
- 18.11"
- Cable Type Included
- USB
- Drop Specification
- 5' (1.5 m)
- Minimum Element Resolution (Code 39)
- 20 mil
- Memory
- Flash Memory
- 8 MB
- Network & Communication
- Bluetooth
- Yes
- Radio Frequency
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Serial
- Battery Information
- Battery Included
- Yes
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 1100 mAh
- Environmental Conditions
- Operating Temperature
- -4°F (-20°C) to 122°F (50°C)
- Storage Temperature
- -4°F (-20°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Weight (Approximate)
- 3.07 oz
- Miscellaneous
- Package Contents
- 1 x KDC480D 1D CCD Bluetooth Barcode Sled Scanner
- 1 x KDC Hand Strap
- 1 x KDC USB Type-C Cable
- 1 x Battery 1100 mAh
- Ingress Protection (IP) Rating
- IP65
- Platform Supported
- Android
- Mac
- iOS
- PC
- BlackBerry
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
