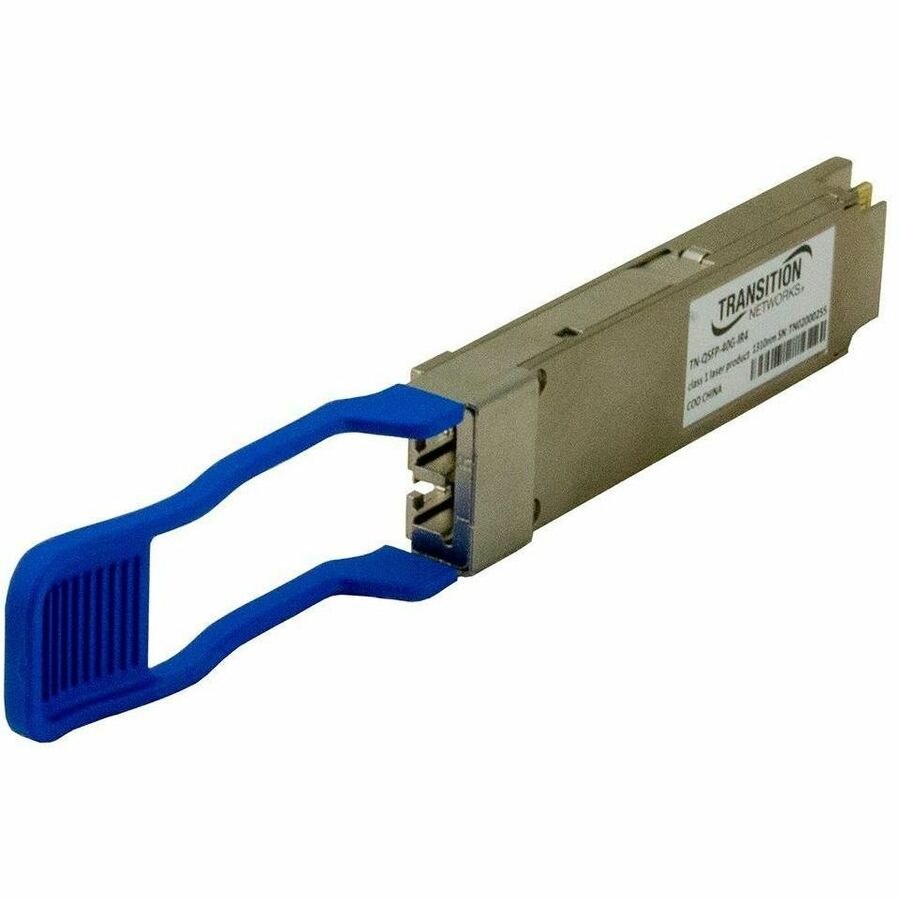

Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant and are designed for bi-directional serial-optical data communication such as 40G Ethernet
Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- TN-QSFP-40G
- Product Type
- QSFP+
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Application/Usage
- Optical Network
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 40GBase-IR4 Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 40 Gigabit Ethernet
- Network Technology
- 40GBase-IR4
- Maximum Distance Supported
- 2 km
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Power Description
- Input Voltage
- 3.3 V
- Physical Characteristics
- Height
- 0.3"
- Width
- 0.7"
- Depth
- 2.8"
- Miscellaneous
- Compatibility
MSA Compliant
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
