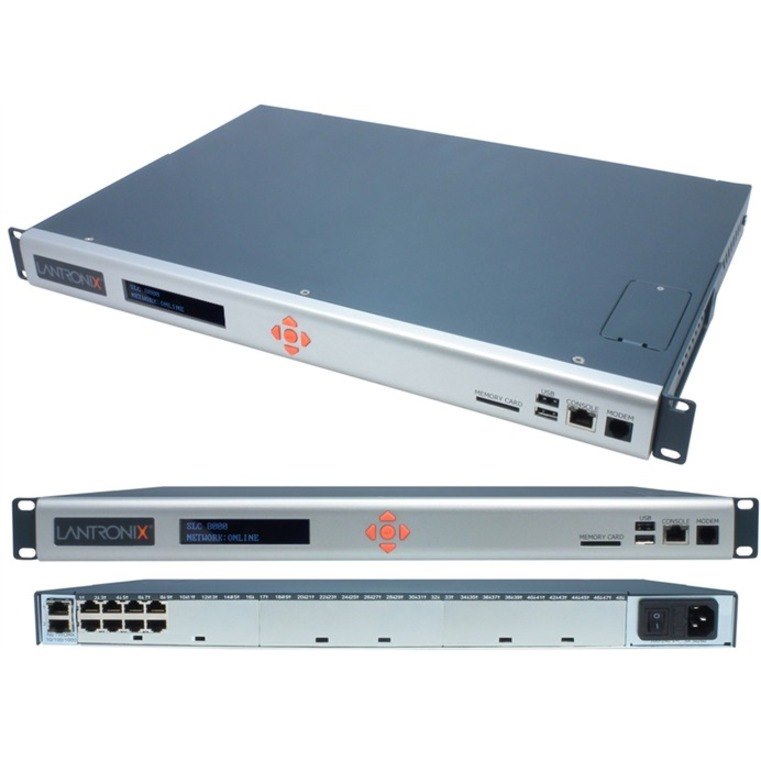

- Secure access to IT equipment with RS-232 and USB console ports
- Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
- Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
- Connect in-band with dual Gigabit Ethernet or dual SFPs and through out-of-band connections including dial-up and cellular connectivity options.
- Modular design to deploy what you need at each location, up to 48 ports: RJ-45 serial, Ethernet, or serial USB.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SLC
- Product Type
- Infrastructure Management Equipment
- Warranty
- Limited Warranty
- 3 Year
- Physical Characteristics
- Form Factor
- Rack Mount
- Height
- 1.8"
- Width
- 17.3"
- Depth
- 12"
- Weight (Approximate)
- 11.10 lb
- Miscellaneous
- Additional Information
- Security and Authentication
- Secure Shell (SSH v1, v2, Public Key)
- Secure Sockets Layer (SSL v3, TLS v1)
- Packet filtering (firewall)
- Per port user permissions
- Configurable user rights and custom groups
- Remote authentication: LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS
- Local username/password
- Software reversible device port pins
- Telnet/SSH to SLC command line
- Telnet/SSH/RAW-TCP direct to IP address and port number
- Web Telnet/SSH
- Multiple concurrent Telnet/SSH sessions
- Simultaneous access on the same port
- No inadvertent "breaks" - Sun break-safe
- Customizable multi-level user menus
- USB port modem access
- Automatic port-initiated connections to network host or neighboring port
- Enable terminal login on any device port
- SD card and USB
- Front panel keypad and LCD display for network setup
- Quick setup and configuration web interface (SSL)
- CLI setup script
- Command line interface (Telnet, SSH, Web Telnet/SSH or direct serial)
- SNMP (MIB II) compatible-v1, v2, v3, custom MIB's
- Integrated power management support-Lantronix SLP® and Server Technology PDU
- Integrated support for Sensorsoft devices
- Diagnostics and port status counters
- Performance monitoring utility
- Packet generation utility
- Network trace utility
- Configuration audit log
- Local subnet search for other SLC's
- Maximum of 352 concurrent users and maximum 10 users per device port at 9600 baud rate (typical)
- DHCP and BOOTP for dynamic IP address assignment
- NTP for time synchronization
- FTP, TFTP, SFTP, SCP client for file transfers
- DNS for text-to-IP address name resolution
- SSH, SSL, Telnet and UDP, PPP with PAP/CHAP, NFS and CIFS for connections in and out of the SLC
- IPsec/VPN
- RIP and RIPv2
- Network: Dual 10/100/1000 Base-T RJ45 Ethernet
- Console: RS-232 (RJ45), 300 to 230400 bps
- USB 2.0 High Speed, Full Speed, Low Speed
- SD card slot: SD and SDHC
- Embedded Linux
- AC model input (single or dual): 100-240 VAC, 50 to 60 Hz
- DC model input (dual): -20 to -72 VDC
- Power consumption: Less than 30W
- FCC Part 15, CE (EN55022, EN55024, EN60950), CSA, VCCI, UL/CUL, C-Tick, CB Scheme, NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197, IPv6 Ready, FIPS 140-2 (pending)
- Compatible with Lantronix' vSLM central management software
- Operating: 0 to 50° C (32 to 122° F), 30 to 90%RH, non-condensing
- Storage: -20 to 80° C (-4 to 176° F), 10 to 90%RH, non-condensing
- Heat Flow Rate: 68 BTU per hour
- Application/Usage
- Remote Management
- Country of Origin
- United States
