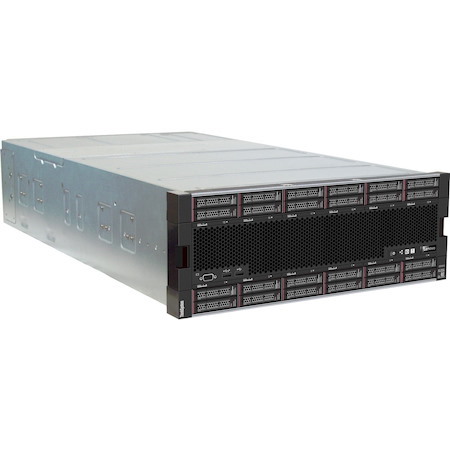

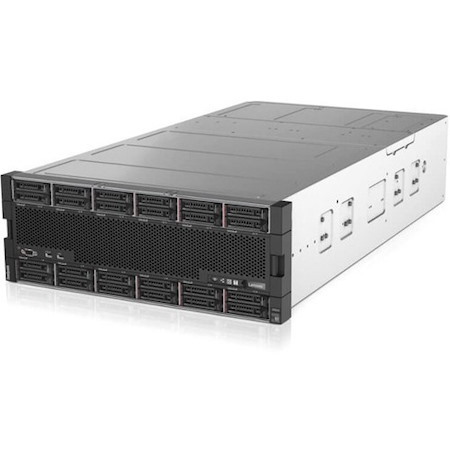

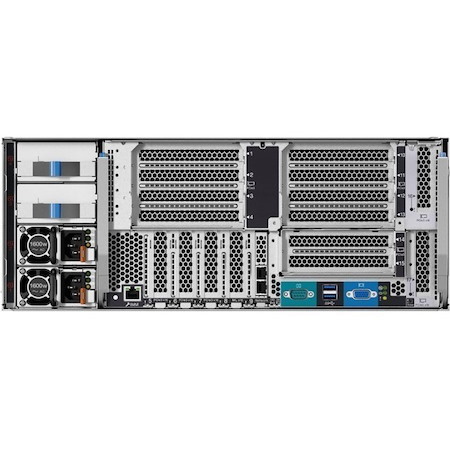

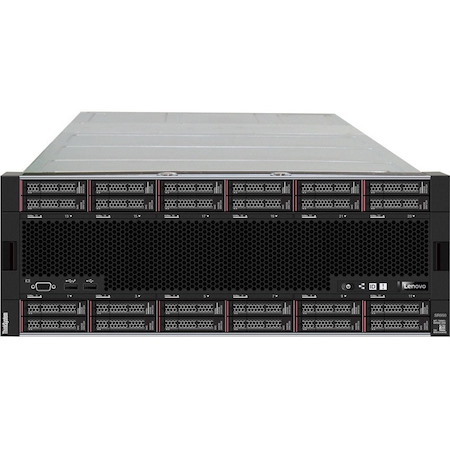

The Lenovo ThinkSystem SR950 is Lenovo's flagship server, suitable for mission-critical applications that need the most processing power possible in a single server. Now supporting second-generation Intel Xeon Scalable Family processors, the powerful 4U ThinkSystem SR950 can expand from two to as many as eight processors. The modular design of SR950 speeds upgrades and servicing with easy front or rear access to all major subsystems that ensures maximum performance and maximum server uptime.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR950
- Product Type
- Server
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 8
- Number of Processors Installed
- 4
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Gold
- Processor Generation
- 2nd Gen
- Processor Model
- 5220
- Processor Core
- Octadeca-core (18 Core)
- Processor Speed
- 2.20 GHz
- Cache
- 24.75 MB
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C624
- Memory
- Standard Memory
- 128 GB
- Memory Technology
- TruDDR4
- Error Checking
- ECC
- Total Number of Memory Slots
- 96.0
- Number of Occupied Memory Slots
- 4
- Controllers
- Controller Type
- 12Gb/s SAS
- Serial ATA/600
- Controller Model
- 930-16i
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of Internal 2.5" Bays
- 8
- Number of SFF Bays
- 8
- Hot Swappable Bays
- Yes
- Total Number of Expansion Slots
- 11.0
- Display & Graphics
- Graphics Controller Manufacturer
- Matrox
- Graphics Controller Model
- G200
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 2
- Number of USB 3.0 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- VGA
- Yes
- Number of VGA Ports
- 2
- Remote Management
- Yes
- Remote Management Controller
- XClarity Controller (XCC)
- Operating System
- Operating System Supported
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.6
- Red Hat Enterprise Linux 7.7
- Red Hat Enterprise Linux 7.8
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8
- Red Hat Enterprise Linux 8.1
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- SUSE Linux Enterprise Server 12 SP4
- SUSE Linux Enterprise Server 12 SP5
- SuSE Linux Enterprise Server 15
- SUSE Linux Enterprise Server 15 SP1
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 4
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C13/C14
- Maximum Power Supply Wattage
- 1600 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 4U
- Height
- 6.9"
- Width
- 17.6"
- Depth
- 33.5"
- Weight (Approximate)
- 129.41 lb
- Miscellaneous
- Package Contents
- ThinkSystem SR950 7X12A02UNA Server
- Rail kit
- Documentation flyer
- 2.8m C13-C14 10A Power Cords
- Security Features
- Administrator and power-on password
- Trusted Platform Module (TPM) supporting both TPM 1.2 and TPM 2.0
- Optional Trusted Cryptographic Module (TCM) or Nationz TPM, available only in China
- Self-encrypting drives with support for IBM Security Key Lifecycle Manager
- Certifications & Standards
- TÜV-GS
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.1
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
