- General Information
- Manufacturer
- LG Electronics
- Manufacturer Website Address
- https://solutions.lg.com/us
- Brand Name
- LG
- Product Series
- LSBC
- Product Type
- Digital Signage Display
Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
90° Corner Installation Available
Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

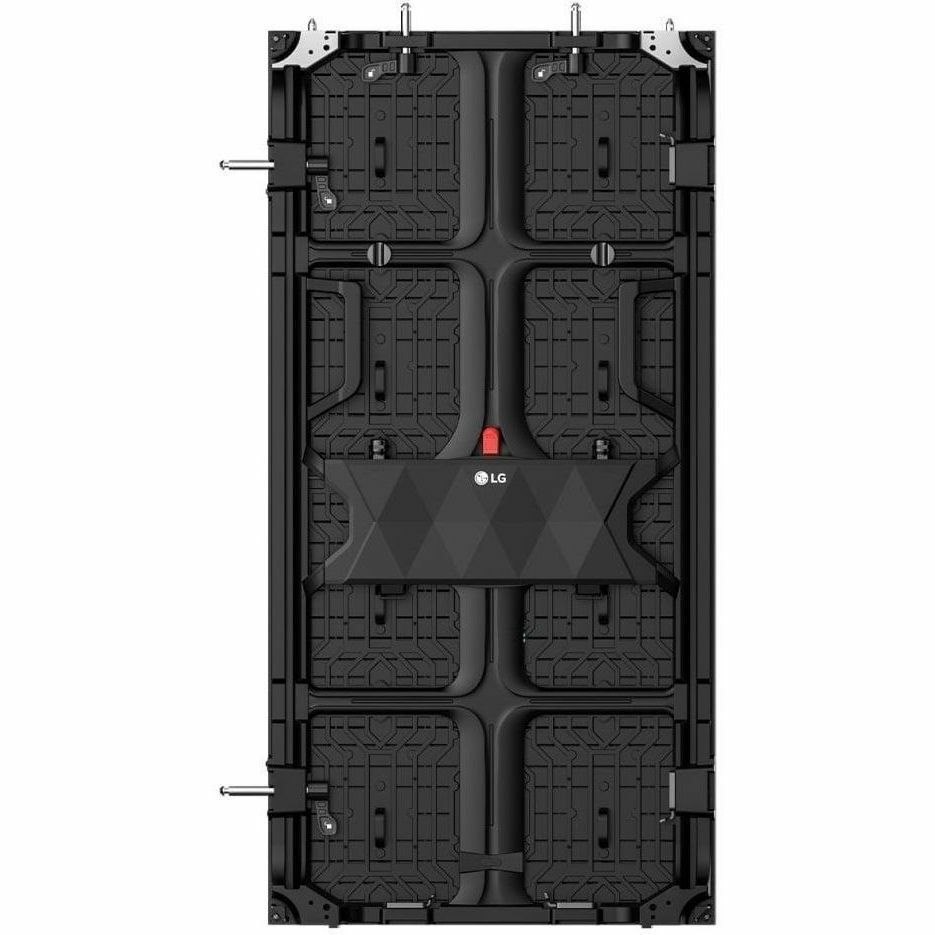

Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.
Quick Lock & Flip Design
Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.
- Technical Information
- Heat Dissipation
- 640.07 W
- Ingress Protection (IP) Rating
- IP50
- Color Uniformity
- 0.003 Cx, Cy
- Display & Graphics
- Display Screen Type
- LCD
- High Dynamic Range (HDR)
- Yes
- High Dynamic Range (HDR) Type
- HDR10
- HDR10 Pro
- Pixel Pitch
- 0.10"
- Backlight Technology
- Direct LED
- Number of Modules Per Cabinet
- 1x2
- Module Resolution
- 96 x 96
- Maximum LED Life
- 11.4 Year
- Physical Pixel Density
- 147456 pixels/m²
- Pixel Configuration
- 3-in-1 SMD
- Video
- Dynamic Contrast Ratio
- 5,000:1
- Color Depth
- 16-bit
- Brightness
- 1000 Nit
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Environmental Conditions
- Minimum Operating Temperature
- -4°F (-20°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Physical Characteristics
- Mount Type
- Panel Mount
- Height
- 19.7"
- Width
- 9.8"
- Depth
- 2.7"
- Weight (Approximate)
- 10.36 lb
- Housing Material
- Die-cast Aluminum
- Miscellaneous
- Indoor/Outdoor
- Indoor
- Application/Usage
- Business
