- General Information
- Manufacturer
- NVIDIA Corporation
- Manufacturer Website Address
- http://www.nvidia.com
- Brand Name
- Mellanox
- Product Line
- Spectrum-3
- Product Series
- SN4000
- Product Type
- Ethernet Switch

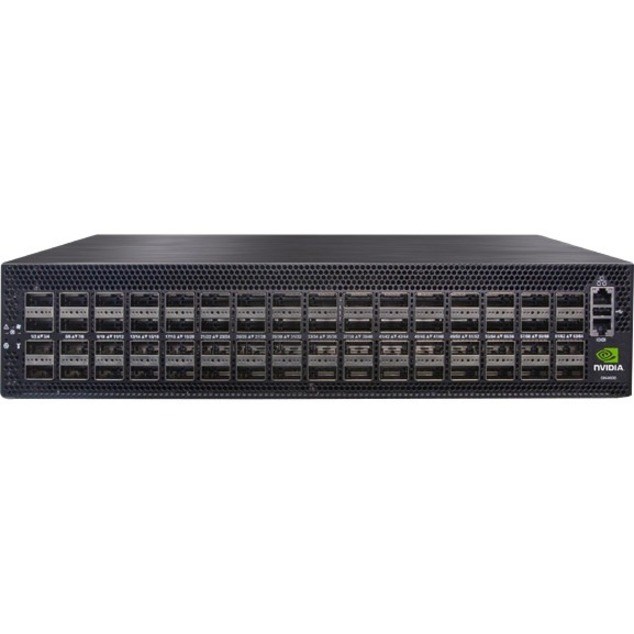

SN4600
SN4600 is a 2U 64-port 200GbE spine that can also be used as a high density leaf, fully splittable to up to 128X 10/25/50GbE ports when used with splitter cables. SN4600 allows for maximum flexibility, with ports spanning from 1 to 200GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 64 x 200 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 200 Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 64.0
- Expansion Slot Type
- QSFP56
- Network & Communication
- Layer Supported
- 4
- Networking Standards
- IEEE 802.1Qbb
- IEEE 802.1x
- IEEE 802.1Qaz
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1D
- IEEE 802.1p
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 2U
- Form Factor
- Rack-mountable
- DIN Rail Mountable
- Height
- 3.5"
- Width
- 16.9"
- Depth
- 22.3"
- Miscellaneous
- Application/Usage
- Data Center
- Business
- Industrial
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
