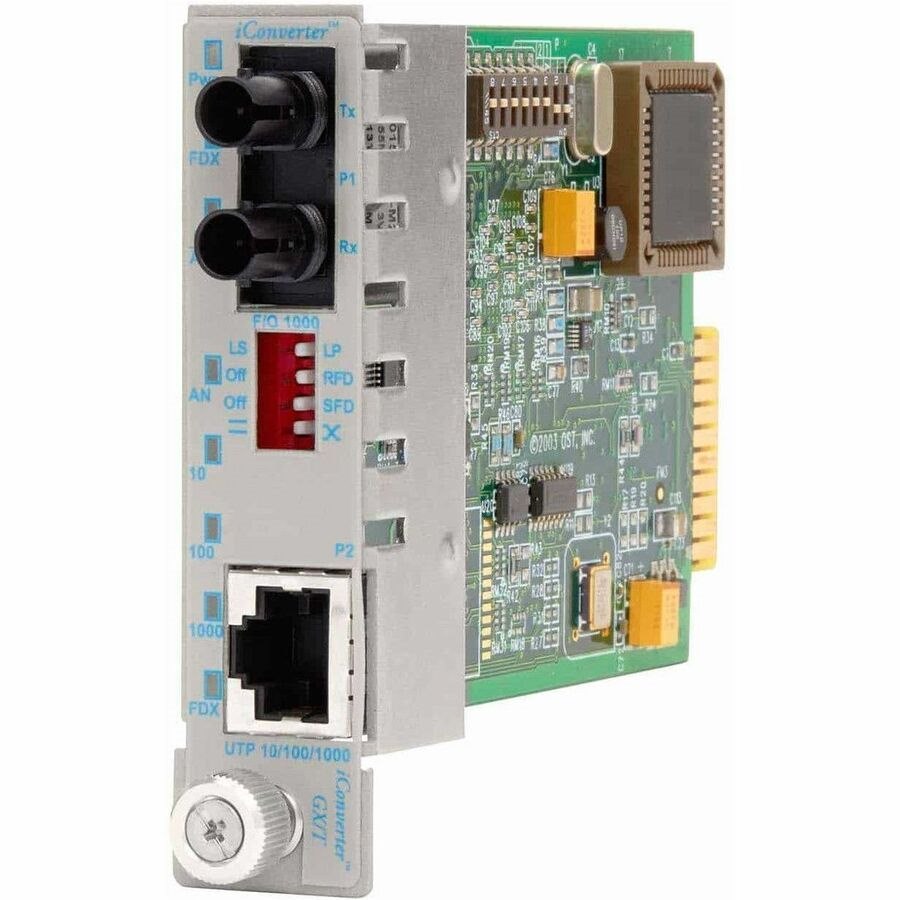

The iConverter GX/T2 is a 10/100/1000BASE-T copper to 100BASE-X or 1000BASE-X fiber media converter, and is available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter GX/T2 supports jumbo frames up to 10,240 bytes.

The GX/T2 supports both 100BASE-X and 1000BASE-X SFPs to provide flexible connectivity to Fast Ethernet or Gigabit networks, and simplifies inventory management in large networks with multiple data rates. The SFPs also enable adaptability to different fiber types and distances, and support Coarse Wave Division Multiplexing (CWDM) and Dense Wave Division Multiplexing (DWDM) to increase the capacity of fiber infrastructure.

The fixed fiber models support 1000BASE-X over multimode and single-mode dual fiber with ST and SC connectors; and single-mode single-fiber with SC connectors.

The RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls.

Advanced features on the chassis plug-in module include IEEE 802.1Q VLAN and 802.1p Quality of Service prioritization standards, and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services. The GX/T2 also supports portlevel MIB statistics reporting real-time packet statistics to provide performance and operational monitoring.

The GX/T2 chassis plug-in module also features two Gigabit Ethernet backplane ports for connectivity to adjacent iConverter modules in a chassis for multi-port and multi-service configurations.

iConverter GX/T2 media converters are available as compact, unmanaged standalone units, or chassis plug-in modules that can be managed with a Management Module (NMM2) or Network Interface Device (NID) installed in the chassis. The management module provides access to the advanced features available on the module.

The GX/T2 standalone unit is available with an external AC to DC power adapter or with a 2-pin terminal connector for direct connection to DC power. The standalone module can be DIN-Rail mounted using the optional DIN-Rail mounting bracket (8250-0) or mounting clips (8251-0).

The hot-swappable plug-in module can be mounted in a 19 or 5-Module iConverter chassis with redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

• General Information
• • Manufacturer
  • Omnitron Systems
  • Manufacturer Website Address
  • http://www.omnitron-systems.com
  • Brand Name
  • Omnitron Systems
  • Product Line
  • iConverter
  • Product Series
  • GX/T2
  • Product Type
  • Transceiver/Media Converter

• Warranty
• • Limited Warranty
  • Lifetime
