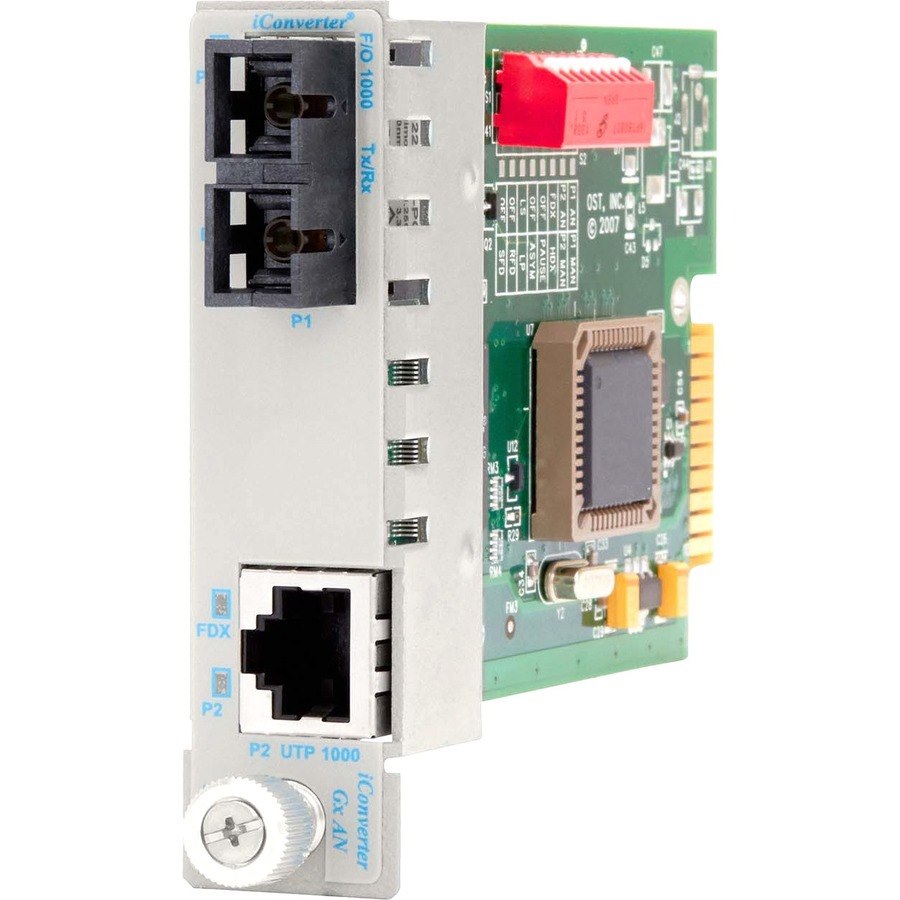

The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.
The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.
- SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
- Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber
- UTP auto or forced negotitaion of duplex modes and pause capabilities
- Fiber port supports auto or manual negotiation
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management of the plug-in module is available with the addition of a management module to the chassis
- SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification
- Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Series
- Gx AN
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 850 nm
- Maximum Distance Supported
- 0.55 km
- Fiber Optic Cable Core/Cladding Specification
- 100/140 µm
- 62.5/125 µm
- 50/125 µm
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-SX
- Physical Characteristics
- Form Factor
- Desktop
- Internal
- Wall Mountable
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Package Contents
- iConverter Gx AN SC Multimode 550m Plug-In Module
- User Manual
- Additional Information
- Wide Temperature Range
- Compatibility
- iConverter 19-Module Chassis
- iConverter 5-Module Chassis
- iConverter 2-Module Chassis
- iConverter 1-Module Chassis
- Certifications & Standards
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- Environmentally Friendly
- Yes
- Country of Origin
- United States
