- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Series
- RS232
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter

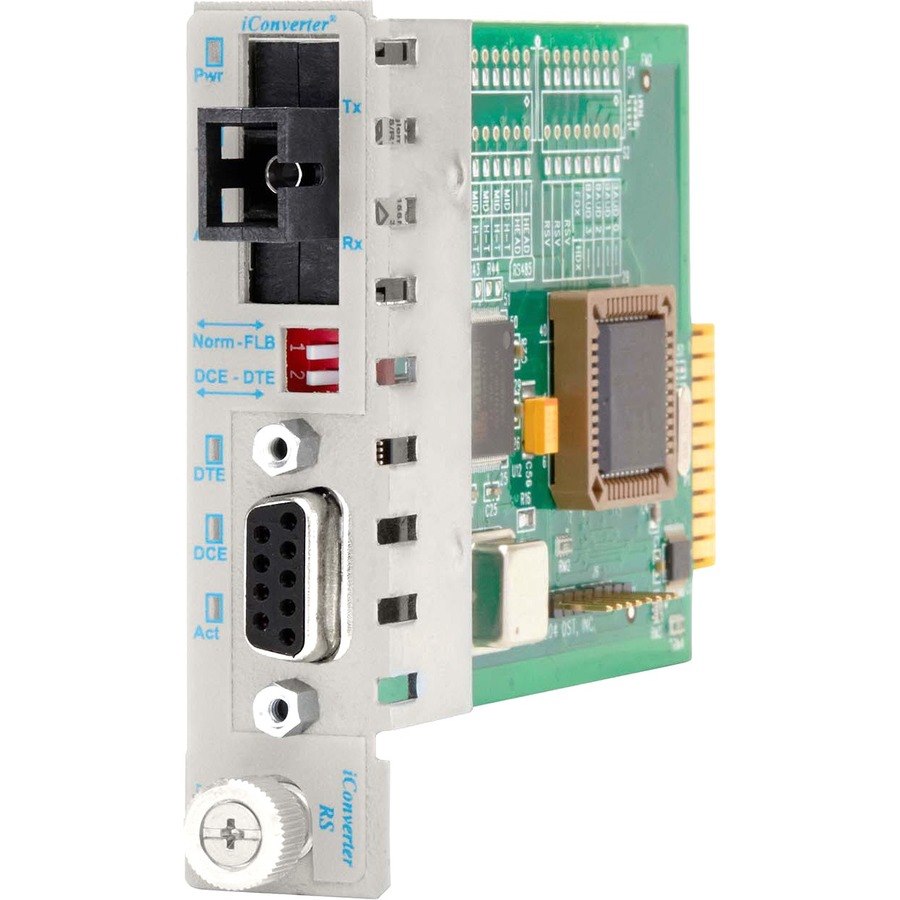

The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- SC Port Type
- Simplex
- Number of Serial Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1550 nm
- Maximum Distance Supported
- 20 km
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- Internal
- Wall Mountable
- Mountable
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Package Contents
- iConverter RS232 DB-9 SC Single-Mode Single-Fiber 13/15 20km Plug-In Module
- User Manual
- Additional Information
Serial Port Type:
- DB-9 (female)
- Compatibility
- iConverter 19-Module Chassis
- iConverter 5-Module Chassis
- iConverter 2-Module Chassis
- iConverter 1-Module Chassis
- Certifications & Standards
- Compliance:
- UL
- CE
- FCC Class A
- Environmentally Friendly
- Yes
- Country of Origin
- United States
