- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Type
- Transceiver/Media Converter

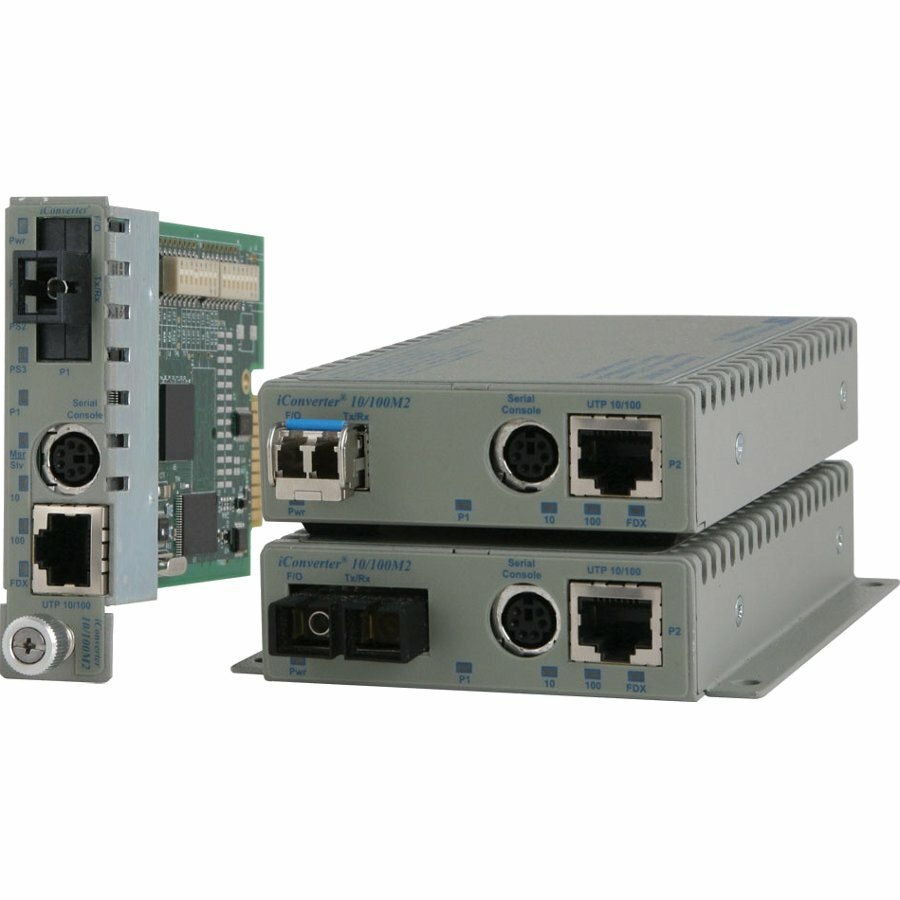

The iConverter 10/100M2 conforms to the Ethernet in the First Mile (EFM) fber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M2 provides intelligent, securely managed service demarcation at the customer premises, offering Layer 2 Control Protocol (L2CP) policy control, Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The 10/100M2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Number of Serial Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Single-mode
- Maximum Distance Supported
- 60 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-FX
- 10/100Base-TX
- Physical Characteristics
- Form Factor
- Internal
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Package Contents
- 8903N-2W Transceiver/Media Converter
- Mini DIN-6 male to DB-9 female adapter included
- Compatibility
- Omnitron System iConverter 19-Module Chassis
- Omnitron System 2-Module Chassis (AC/DC)
- Omnitron System 1-Module Chassis (AC/DC)
- Certifications & Standards
- UL
- CE
- FCC Class A
- MEF 9
- MEF 14
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
