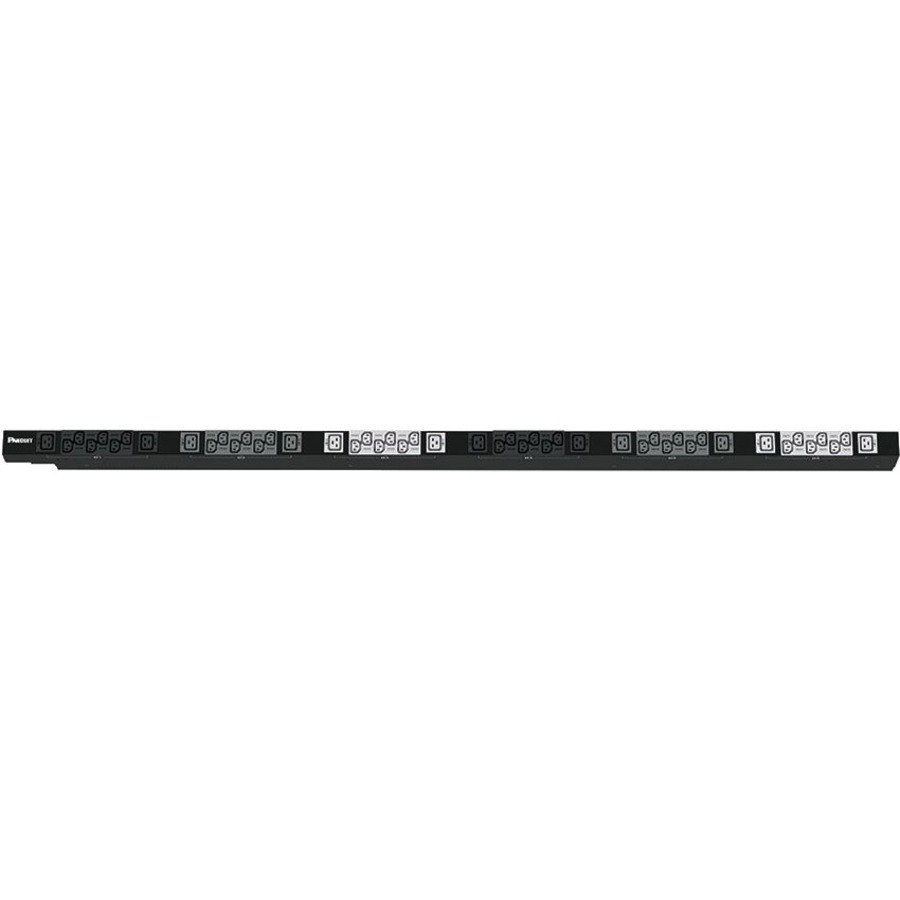

Panduit P48B33M Vertical Basic Power Distribution Unit

  • Part: 1198036
$1,546.00

Availability

Out of Stock

The 60A, 208V vertical 3 Phase Delta Vertical PDU has (36) C13 and (12) C19 receptacles, a 10' (3m) power cord with a IEC 60309 3P+E 9h 60A plug, and measures 71.7"L x 2.0"W x 4.4"D (1821.2mm x 50.8mm x 111.8mm). UL Listed. Color: Black

  • General Information
    • Manufacturer
    • PANDUIT CORP
    • Manufacturer Website Address
    • http://www.panduit.com
    • Brand Name
    • Panduit
    • Packaged Quantity
    • 1
    • Product Type
    • PDU

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Three Phase
    • Plug/Connector Type
    • IEC 60309 3P+E 9H 60A
    • Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 12 x IEC 60320 C19
    • 36 x IEC 60320 C13
    • Protection Type
    • Circuit Protection
  • Power Description
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 230 V AC
    • Power Rating (VA)
    • 17.30 kVA
    • Input Current
    • 60 A
  • Physical Characteristics
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Width
    • 2"
    • Depth
    • 4.4"
    • Length
    • 71.7"
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
