- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.com
- Brand Name
- Peerless-AV®
- Product Series
- FPS-1000
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount

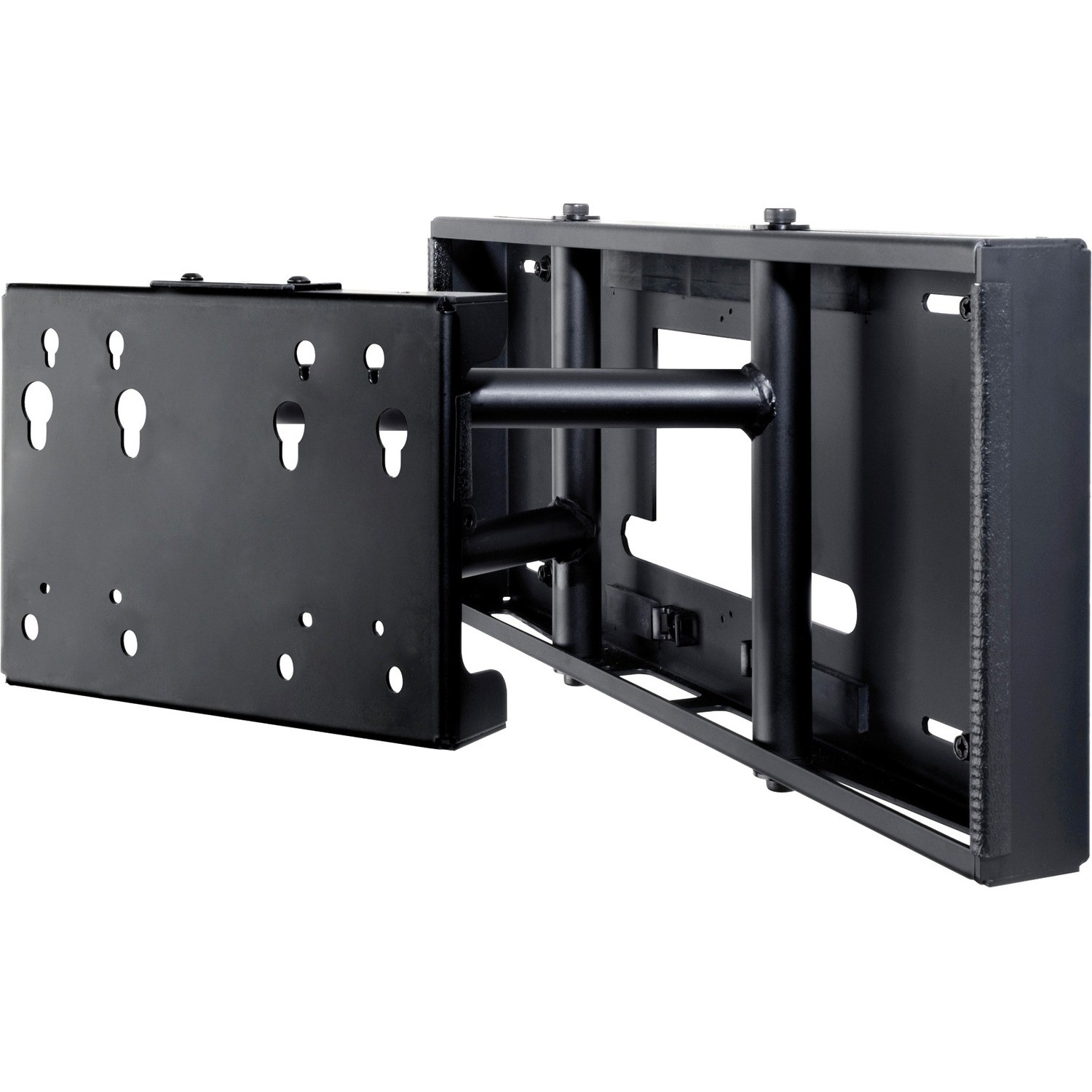

The FPS-1000 Pull-out Swivel Wall Mount combines the best features of a wall mount and a pivot arm in one. This mount is essential for on the wall, low-profile, single or multi-panel video wall installations or hospitality recessed applications. It comes standard with VESA® 100/200mm compliant mounting hole pattern and is compatible with Peerless-AV PLP adaptor technology to accommodate virtually any flat panel display. Installation and maintenance are made easy with 4" (101.6mm) of horizontal on the wall shift, LockKey™ safety feature and easy access to the back of the display for maintenance. Functionality, great looks and display compatibility options combined with versatile installation features make the FPS-1000 the ideal solution for any single or multi-display installation.
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Video Wall
- Display
- Flat Panel Display
- TV
- Maximum Load Capacity
- 150 lb
- Minimum Screen Size Supported
- 32"
- Maximum Screen Size Supported
- 80"
- Minimum Adjustable Depth
- 2.16"
- Maximum Adjustable Depth
- 10.53"
- Features
- Security Lock
- Lockable
- Adjustable Roll
- Swivel
- Adjustable Angle
- Retractable
- Extendable
- +/- 1° Roll
- Mount Profile
- Low Profile
- Minimum Swivel Angle
- -45°
- Maximum Swivel Angle
- 45°
- Mount Function
- Wall Mount
- Mount Surface
- Wall
- Durability
- Scratch Resistant
- Tamper Resistant
- Theft Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- Fused Epoxy
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 100 x 100
- 200 x 100
- Form Factor
- Wall Mountable
- Height
- 9.64"
- Width
- 21"
- Depth
- 10.53"
- Weight (Approximate)
- 17.60 lb
- Miscellaneous
- Package Contents
- Pull-out Swivel Wall Mount for 32" to 80" (81 to 203 cm) Displays
- LockKey™ Installation Tool
- Locking Swivel Tab
- Cable Management Sleeve
- Fastener Packet Including VESA® 100 x 100 and 200 x 100mm Display Attachment
- Application/Usage
- Hospitality
- Stud
- Indoor/Outdoor
- Indoor
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Manufacturer Product Class
- Hospitality
- Assembly Required
- Yes
- Country of Origin
- United States
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
