- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.com
- Brand Name
- SmartMount®
- Product Series
- SP850
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount

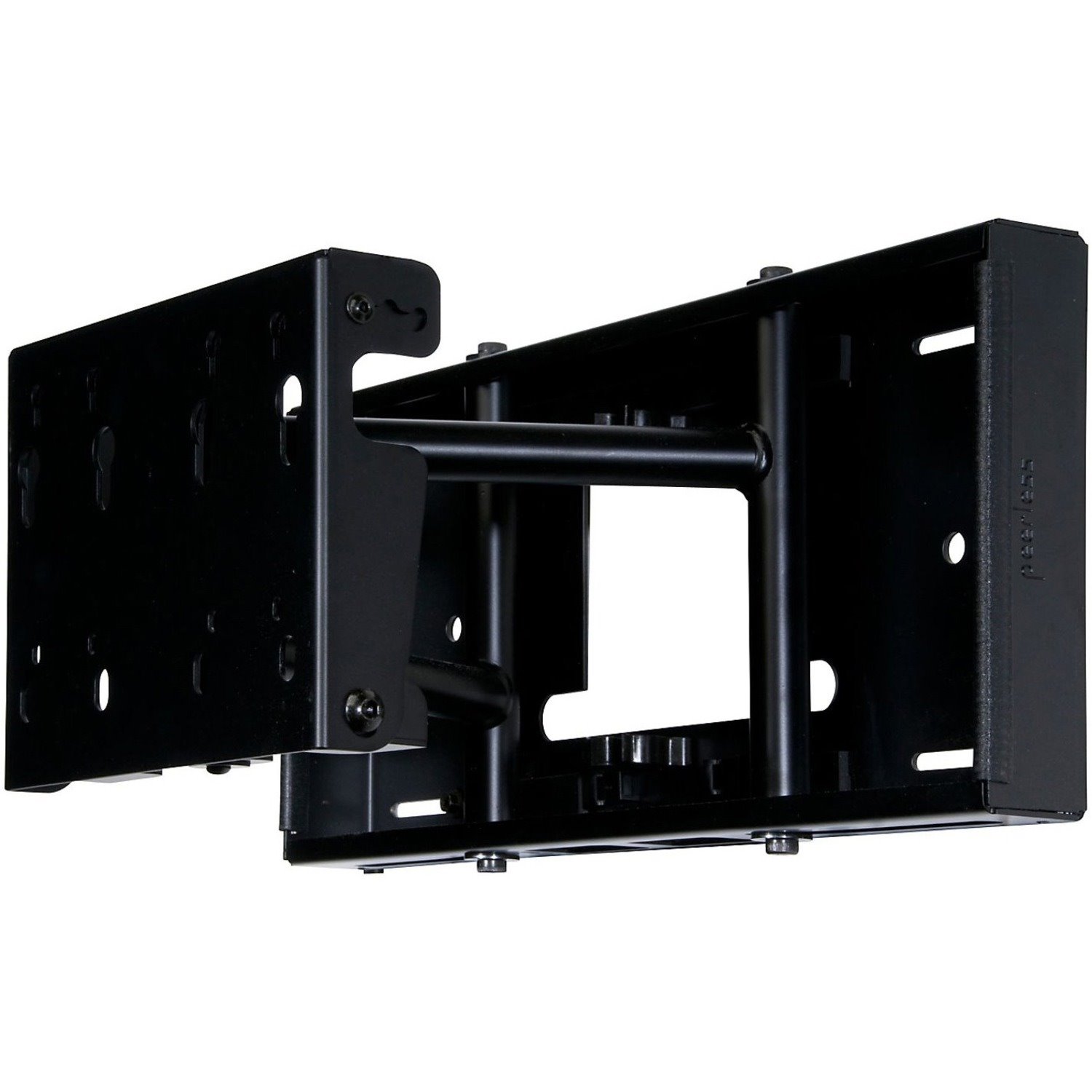

The SP850 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 1.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Flat Panel Display
- Maximum Load Capacity
- 150 lb
- Minimum Screen Size Supported
- 32"
- Maximum Screen Size Supported
- 80"
- Minimum Adjustable Depth
- 2.31"
- Maximum Adjustable Depth
- 10.68"
- Features
- Pivot
- Cable Management
- Sturdy
- Extendable
- Minimum Tilt Angle
- 0°
- Maximum Tilt Angle
- 10°
- Minimum Swivel Angle
- -45°
- Maximum Swivel Angle
- 45°
- Mount Function
- Pivot
- Cable Management
- Wall Mount
- Mount Surface
- Wall
- Wood Stud
- Concrete
- Cinder Block
- Durability
- Tamper Resistant
- Theft Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- Triglycidyl Isocyanurate Polyester (TGIC)
- Powder Coated
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 100 x 100
- 200 x 100
- Form Factor
- Wall Mountable
- Height
- 9.76"
- Width
- 21"
- Depth
- 10.68"
- Weight (Approximate)
- 17.60 lb
- Miscellaneous
- Package Contents
- Wall Mount Assembly
- LockKey Installation Tool
- Locking Tab
- Cable Management Sleeve
- Fastener Pack Including VESA 100 x 100, 200 x 100mm Display Attachment, Universal Adaptor Plate (Select Models)
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Manufacturer Product Class
- Pivot
- Assembly Required
- Yes
- Country of Origin
- United States
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
