- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- IDS-509G
- Product Type
- Ethernet Switch

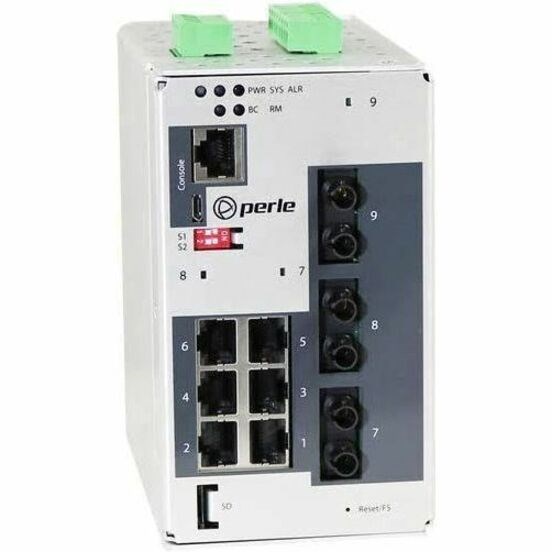

TheIDS-509Gis a9 port Managed Ethernet Switchthat can operate inindustrial environmentsproviding advanced performance and enablingreal-time deterministic network operation. Choose any combination of10/100/1000-Base-T Ethernet copper portsand1000Base-X fiber portsto meet the needs of your environment.
In environments wherehigh levels of electromagnetic interference (EMI)is a common phenomenon,like industrial plants,utilizing fiber is critical. EMI can cause data corruption over copper-based Ethernet links. Data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
With over 82 models, the Perle IDS-509G offers a choice of connectors, fiber types, temperature support and operating distances.
PerleIndustrial-grade Ethernet Switchesare designed to stand up toextreme temperatures, surges, vibrations, andshocksfound inindustrial automation, government, military, oil and gas, miningandoutdoor applications.
The simplePlug and Playinstallation available in Perle'sFast Setup featuregets your Ethernet devices networked immediately.CCNA(Cisco Certified Network Associate) andCCNP(Cisco Certified Network Professional) trained engineers will appreciate the familiarCommand Line Interface (CLI)via in-band Telnet or the out-band serial console port.
ThePRO feature setin the IDS-305F is ideal for enterprise-grade level environments where additional extensivesecurityandnetwork integrationfunctionality is required.
- AAA ( Authentication, Authorization, Accounting)security protocols: RADIUS and TACACS+
- Secure management sessionsvia SSH, SNMPv3, Telnet and HTTPS
- Management Access Lists(ACL) by IP address and IP Port number
- Password Strength Checking
- IEEE 802.1x Authentication and Port Securityfor protection of user access ports
- Optimize the performance and intelligence of the network withAdvanced Protocols: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping
- Technical Information
- Features
- IP20
- Fanless
- Plug and Play
- Interfaces/Ports
- Total Number of Network Ports
- 9
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
- 2 x 1000Base-SX Duplex ST Connector
- 1 x 1000Base-EX Duplex SC Connector
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Fiber Optic Cable Wavelength
- 850 nm
- 1310 nm
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-SX
- 1000Base-EX
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1ab
- IEEE 802.1D
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 101750 Hour
- Power Description
- Input Voltage
- 12 V DC
- 24 V DC
- 48 V DC
- 60 V DC
- 24 V AC
- Power Source
- Power Supply
- AC/DC
- Redundant Power Supply Supported
- Yes
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 4.8"
- Width
- 5.1"
- Depth
- 3"
- Weight (Approximate)
- 1.41 lb
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Government
- Outdoor
- Security
- Server
- Automation Industry
- Country of Origin
- Canada
