- General Information
- Manufacturer
- QNAP Systems
- Manufacturer Website Address
- http://www.qnap.com
- Brand Name
- QNAP
- Product Line
- Turbo NAS
- Product Type
- NAS Storage System
Simple, Secure, Scalable and Reliable Storage
QNAP TS-EC1679U-SAS-RP, featuring the easy-to-use QTS 4.0 operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC1679U-SAS-RP supports SAS hard drives delivering exceptional performance coupled with full duplex functionality, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.
- Warranty
- Limited Warranty
- 2 Year
- Storage
- Number of Hard Drives Supported
- 16
- Number of Solid State Drive Supported
- 16
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Xeon
- Processor Model
- E3-1245 v2
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 3.40 GHz
- Cache
- 8 MB
- Memory
- Standard Memory
- 8 GB
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR3 SDRAM
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 16
- Number of 2.5"/3.5" Bays
- 16
- Total Number of Expansion Slots
- 2
- Controllers
- Controller Type
- 6Gb/s SAS
- Serial ATA/600
- RAID Supported
- Yes
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 2.0 Ports
- 4
- Number of USB 3.0 Ports
- 2
- Network (RJ-45)
- Yes
- Software
- Operating System
- Linux
- Management & Protocols
- Protocols
- TCP/IP
- IPv4
- IPv6
- CIFS/SMB
- AFP 3.3
- NFSv3
- FTP
- SFTP
- TFTP
- FTPS
- HTTP
- HTTPS
- Telnet
- SSH
- iSCSI
- SMTP
- SMSC
- SSL/TLS
- RSync
- LDAP
- DHCP
- SNMPv3
- SNMPv2
- Management
Disk Management
- QNAP Flexible Volume with thin-provisioning and space reclamation supported
- Supports Storage Pool
- Online Volume Expansion
- Online Storage Pool Expansion
- Online RAID Capacity Expansion and Online RAID Level Migration
- SMART Data Migration
- Bad Block Scan and Hard Drive S.M.A.R.T.
- Bad Block Recovery
- RAID Recovery
- Bitmap Support
Power Management
- Wake on LAN
- Internal Hard Drive Standby Mode
- Scheduled Power on/off
- Automatic Power on after Power Recovery
- USB and Network UPS Support with SNMP Management
Access Right Management
- Batch Users Creation
- Import/Export Users
- User Quota Management
- Local User Access Control for CIFS, AFP, FTP, and WebDAV
- Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Maximum Power Supply Wattage
- 600 W
- Physical Characteristics
- Height
- 5.1"
- Width
- 17.4"
- Depth
- 20.8"
- Form Factor
- Rack-mountable
- Rack Height
- 3U
- Weight (Approximate)
- 40.34 lb
- Miscellaneous
- Package Contents

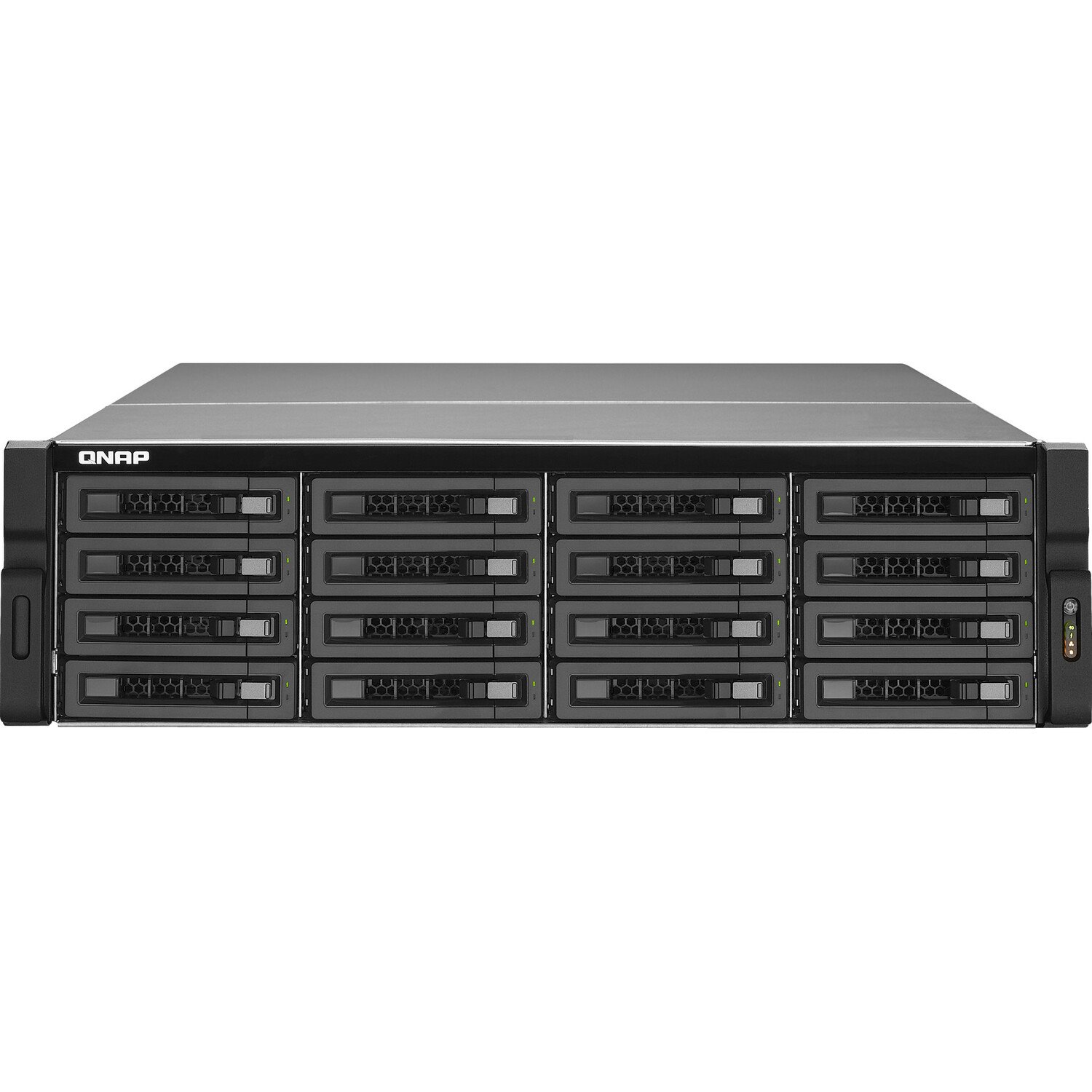

- TS-EC1679U-SAS-RP 16-bay SAS/SATA-enabled Unified Storage
- CD
- 4 x Ethernet Cables
- 2 x Power Cords
- 64 x Flat Head Screw (for 3.5" HDD)
- 64 x Flat Head Screw (for 2.5" HDD)
- Quick Installation Guide
