VERSATILE 1.3-LITRE AI PC WITH EXCEPTIONAL CONNECTIVITY

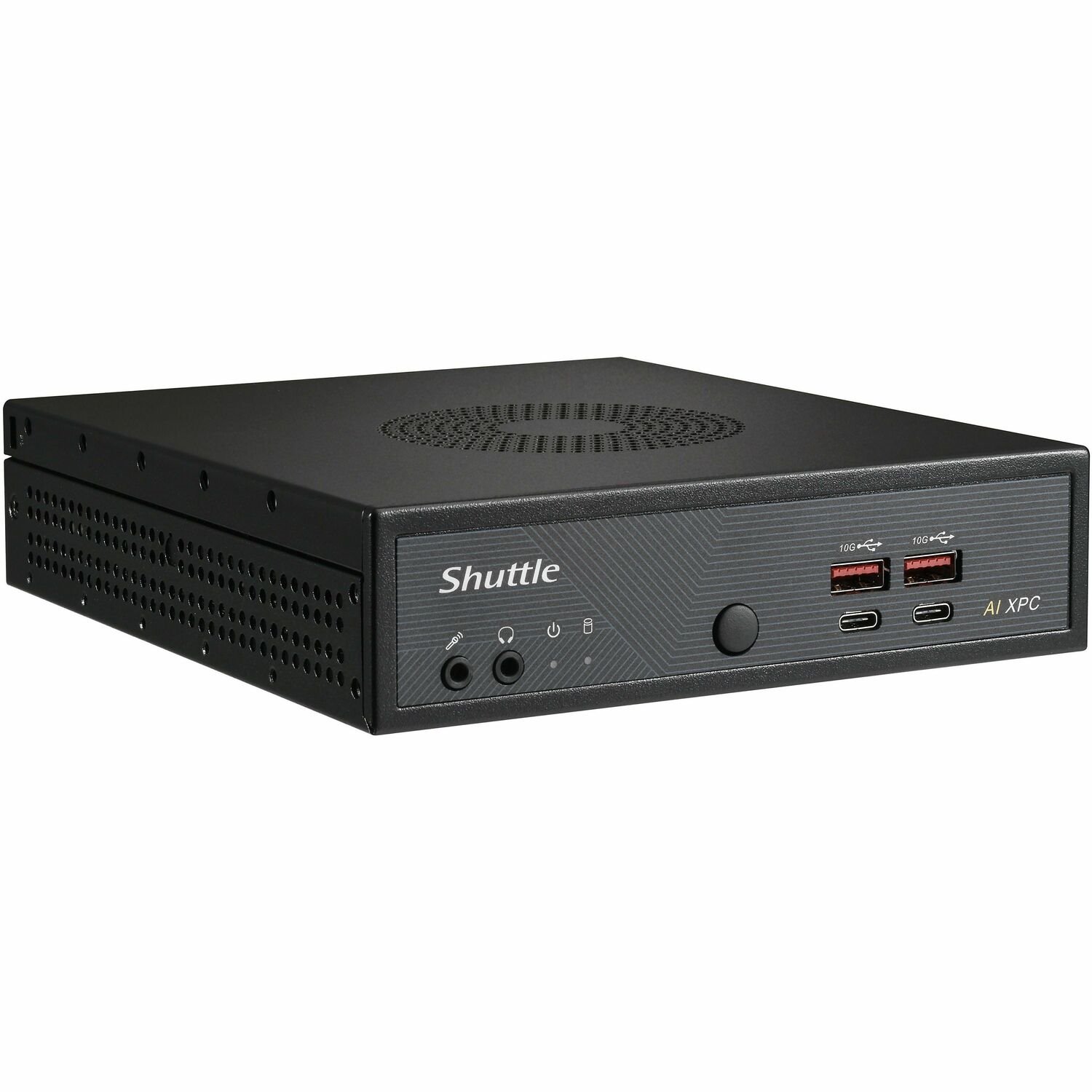

The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core™ Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, offering up to 34 TOPS of total system performance to support complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.
- General Information
- Manufacturer
- Shuttle, Inc
- Manufacturer Website Address
- http://www.us.shuttle.com
- Brand Name
- Shuttle
- Product Line
- XPC
- Product Type
- Barebone System
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket BGA-1528
- Processor Manufacturer
- Intel
- Processor Type
- Core Ultra 7
- Processor Model
- 155H
- Processor Core
- Hexadeca-core (16 Core)
- Processor Speed
- 1.40 GHz
- Maximum Turbo Speed
- 4.80 GHz
- NPU Manufacturer
- Intel
- NPU Name
- AI Boost
- NPU Performance
- 11 TOPS
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 96 GB
- Memory Technology
- DDR5 SDRAM
- Memory Standard
- DDR5-5600/PC5-44800
- Total Number of Memory Slots
- 2
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- M.2
- Supported Storage Drive Types
- SSD
- HDD
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Screen Size
- 15.6"
- Display Screen Type
- LCD
- Screen Mode
- HD
- Screen Resolution
- 1366 x 768
- Touchscreen
- Yes
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- Arc Graphics
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11b/g/n/ac
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 4.2
- Built-in Devices
- Webcam
- Yes
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 8
- Number of USB 3.2 Gen 1 Ports
- 4
- Number of USB 3.2 Gen 2 Ports
- 2
- Number of Onboard USB 2.0 Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of VGA Ports
- 1
- Operating System
- Operating System Supported
- Windows 11 x64
- Linux
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 120 W
- Thermal Design Power
- 28 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Desktop
- Rack Height
- 2U
- Height
- 1.7"
- Width
- 6.5"
- Depth
- 7.5"
- Weight (Approximate)
- 2.71 lb
- Miscellaneous
- Application/Usage
- POS System
- Kiosk
- Energy Star
- Yes
