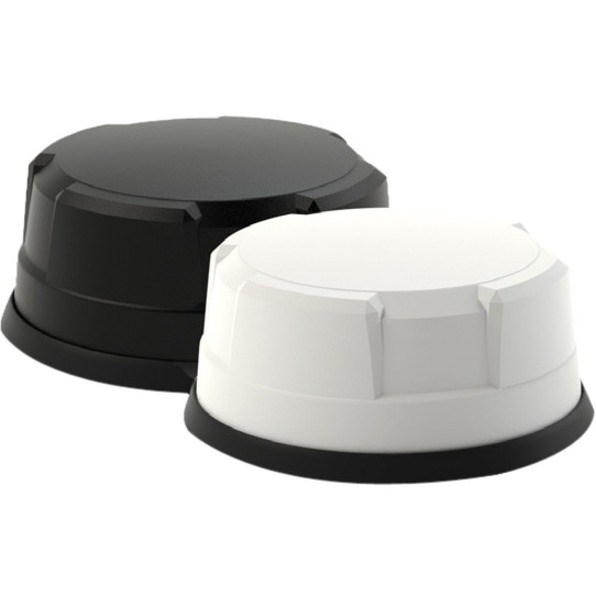

AirLink® Antenna: 6-in-1 Dome
The 6-in-1 Dome has been tested and certified to operate with AirLink LTE routers and gateways.
It has a low profile design that contains six isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 698-2700MHz support MiMo/diversity at LTE frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and three dualband 2.4/5GHz Wi-Fi elements that provide 3x3 MiMo Wi-Fi.
The antenna is ground plane independent, and maintains a high level of performance even when mounted on a non-metallic surface.
- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Sierra Wireless
- Product Line
- AirLink
- Packaged Quantity
- 1
- Product Type
- Antenna
- Technical Information
- Operating Frequency Range
- 698 MHz to 960 MHz
- 1710 MHz to 2700 MHz
- 2.4 GHz
- 5 GHz
- 4.9 GHz to 6 GHz
- 1562 MHz to 1612 MHz
- Antenna Gain
- 26 dB
- Interfaces/Ports
- Connector Type
- SMA
- RP-SMA
- Physical Characteristics
- Product Color
- Black
- Height
- 2.44"
- Diameter
- 6.93"
- Form Factor
- Bolt Mount
- Weight (Approximate)
- 2.83 lb
- Miscellaneous
- Application/Usage
- GPS
- Cellular Network
- Wireless Data Network
- Wireless Router
- Gateway
