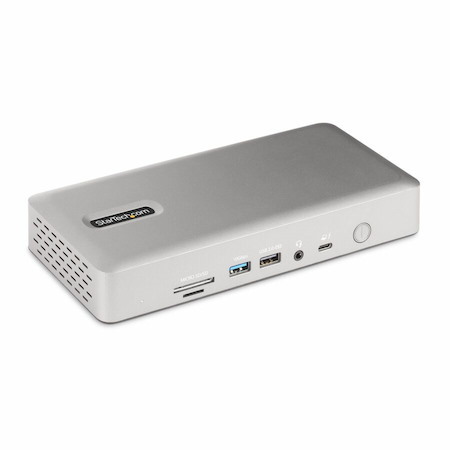

Engineered to maximize performance and future-proof your workspace, this universal USB4 and Thunderbolt 4 dock is Thunderbolt Certified, ensuring reliable connectivity and optimal user experience.
Quad Display on Windows
Push the boundaries of productivity with quad 4K 60Hz displays on Windows laptops running the latest Intel 12th Gen CPUs (or later) and DP 1.4 with DSC. Legacy systems still benefit from flexible dual or triple monitor setups.
Dual Display on Mac
Experience dual extended 4K displays on MacBook Air and Pro powered by M3 or M4 chips (clamshell mode required for M3), and MacBook M1 / M2 Pro or Max configurations. For Apple computers featuring the M-series base processor only a single display is supported.
98W Power Delivery
Includes a fully spec'd 180W power adapter that enables the dock to charge the laptop with 98W Power Delivery, while preserving enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Speaker
- Headset
- Monitor
- Tablet
- Notebook
- Smartphone
- Cable Length
- 3.28 ft
- Memory Card Reader
- Yes
- Memory Card Supported
- microSD
- SD
- Micro Size MultiMediaCard (MMC)
- SDHC
- SDXC
- microSDHC
- microSDXC
- Features
- LED Power Indicator
- Management Features
- PXE Boot
- Wake-on-LAN
- MAC Address Pass-through
- Number of Displays Supported
- 4
- Screen Mode Supported
- 8K
- 4K @ 60Hz
- Supported Resolutions
- 3840 x 2160
- 7680 x 4320
- Maximum Data Transfer Rate
- 5 GB/s
- Security Slot Type
- Kensington Security Slot
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- Thunderbolt 4
- Total Number of USB Ports
- 7
- Number of USB 2.0 Ports
- 1
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB 3.2 Gen 2 Type-A Ports
- 3
- Number of USB Type-A Ports
- 6
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
- Number of USB Type-C Ports
- 1
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- DisplayPort
- Yes
- DisplayPort Version
- 1.4
- Number of DisplayPort Outputs
- 2
- Headphone/Microphone Combo Port
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- Number of HDMI Outputs
- 2
- Thunderbolt
- Yes
- Thunderbolt Ports Quantity
- 1
- Number of Thunderbolt 4 Ports
- 1
- USB Power Delivery
- 98W
- Software
- Operating System Supported
- Windows 11
- Windows 10
- macOS Big Sur
- macOS Monterey
- macOS Ventura
- macOS Sonoma
- macOS Sequoia 15
- Power Description
- Input Voltage Detail
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 180 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Space Gray
- Height
- 1.40"
- Width
- 8.30"
- Length
- 3.8"
- Weight (Approximate)
- 7.10 oz
- Miscellaneous
- Package Contents
- Docking Station
- 1 x 3ft (1m) Thunderbolt 4 Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
- Kensington Security Slot
- Yes
- Compatibility
Compatible Devices:
- Apple iPad Pros with M1 or later processors
- Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops
- Dell Precision 5560 Mobile Workstation
- Dell Precision 5760 Mobile Workstation
- Dell XPS 13 9310 2 in 1 Laptop
- HP EliteBook 850 G8 Notebook PC
- HP ProBook 450 G8 Notebook PC
- Lenovo X1 Carbon 9th Gen Laptop
- Apple M1/M2/M3 Pro/Max MacBooks
- Apple MacBook Air
- Apple iPad Pro M1
- All Thunderbolt 4/3 and USB4 laptops
- Brand Compatibility
- Intel
- HP
- Dell
- Lenovo
- Apple
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
