- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperChassis
- Product Type
- Server Case
- Technical Information
- Motherboard Supported
- ATX
- EATX
- Number of Fans Installed
- 3
- Bays
- Number of External 5.25" Bays
- 1
- Number of External 3.5" Bays
- 9
- Number of Internal 3.5" Bays
- 2
- Number of Total Expansion Bays
- 12
- I/O Expansions
- Total Number of Expansion Slots
- 7
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Front USB
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Power Supply Wattage
- 720 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Compatible Rack Unit
- 2U
- Form Factor
- Rack-mountable
- Height
- 3.5"
- Width
- 17.2"
- Depth
- 25.5"
- Weight (Approximate)
- 52 lb
- Miscellaneous
- Package Contents

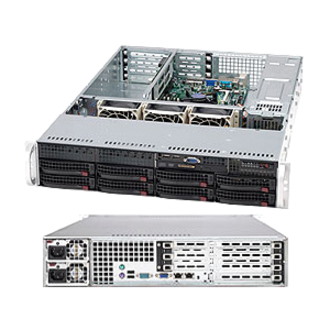

- SuperChassis SC825TQ-R720UB Rackmount Enclosure
- 1 x SAS / SATA Backplane
- 2 x 8-pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF
- 1 x SC825 20PIN REDUNDANT POWER DISTRIBUTOR
- 2 x PWS-721P-1R power supply
- 1 x Air Shroud
- 1 x Accessories Box for SC825 with two power cords, NO FDD acc.
- 1 x Front ctrl cable ROUND 16 TO 16 PIN RIBBON 20"
- 3 x (80 X 38mm) 4-PIN PWM FAN W/ HUS FOR SC825
- 1 x Rail set, quick/quick, default for 2,3U 17.2"W
- 8 x Hot-swap 3.5" hard drive trays
- 2 x Fixed HDD tray or FDD dummy tray
- 1 x Black USB Dummy Tray
- 1 x DVD-ROM drive dummy cover
- 1 x Slim CDR Accessory
- 1 x Black FDD Cover
- Additional Information
- 8x 3.5" SAS / SATA Hot-swap drive bays
- 1x 2U SAS backplane with Enclosure Management
Expansion Slots Detail:
- 3 x Full-height, Full-length and 3 x Low-Profile with Universal I/O (UIO) Card
- 4 x Full-height, Full-length and 3 x Low-Profile without Universal I/O (UIO) Card
- Environmentally Friendly
- Yes
