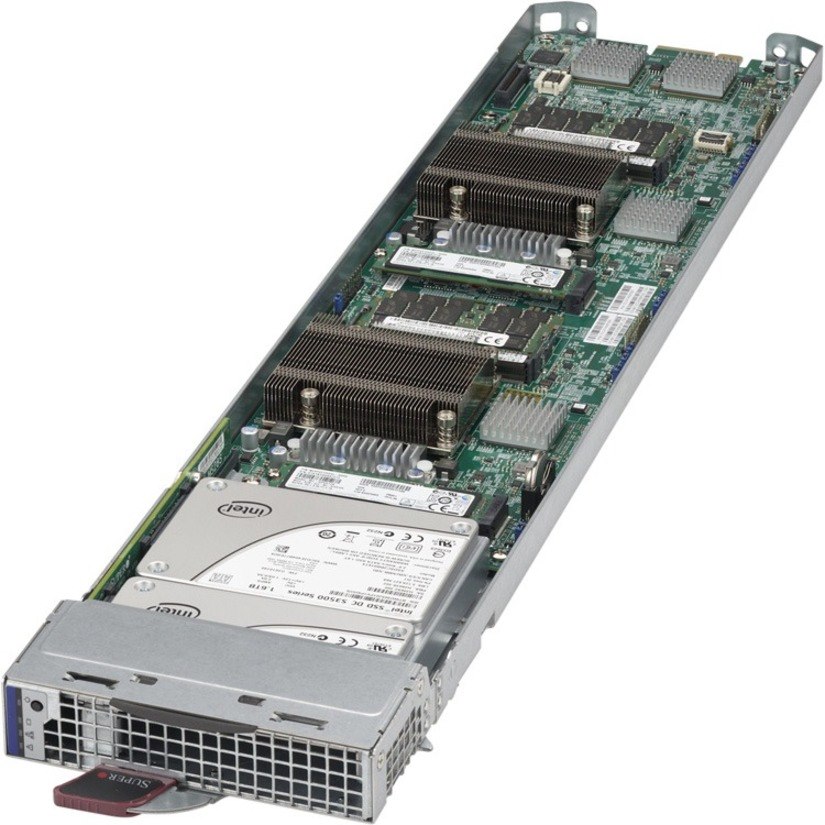

The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U/3U all-in-one total system that features 28/14 hot-swappable MicroBlade Servers supporting 28/14 Newest Dual-Node Xeon UP systems with Intel E3-1200 v5 family configurations with up to 2 SSDs/1 HDD per Node. The 6U/3U MicroBlade enclosure can incorporate up to 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/2000W High-Efficiency (95%/96%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, Video Streaming, Content Delivery, Social Networking, Desktop Virtualization and Remote Workstation applications.
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- MicroBlade
- Product Type
- Server
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Type
- Xeon
- Processor Model
- E3-1585 v5
- Memory
- Maximum Memory Supported
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Total Number of Memory Slots
- 2
- Controllers
- Controller Type
- Serial ATA/600
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Number of Internal 2.5" Bays
- 1
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Physical Characteristics
- Form Factor
- Blade
- Height
- 1.2"
- Width
- 4.9"
- Depth
- 23.2"
- Miscellaneous
- Package Contents
- MicroBlade MBI-6219G-T8HX
- 1x MicroBlade Board
- 1 x M628 MicroBlade Skylake UP transcoding (complete assembly)
- 2 x M628 Sled AOM-BPN Bracket
- 1 x M628 Sled Node Cover with asset tag
- 1 x M628 Sled Front Window with asset tag opening
- 1 x M628 MicroBlade Skylake UP transcoding Sled Base
- 1 x AOM-BPN-MS28HS-P
